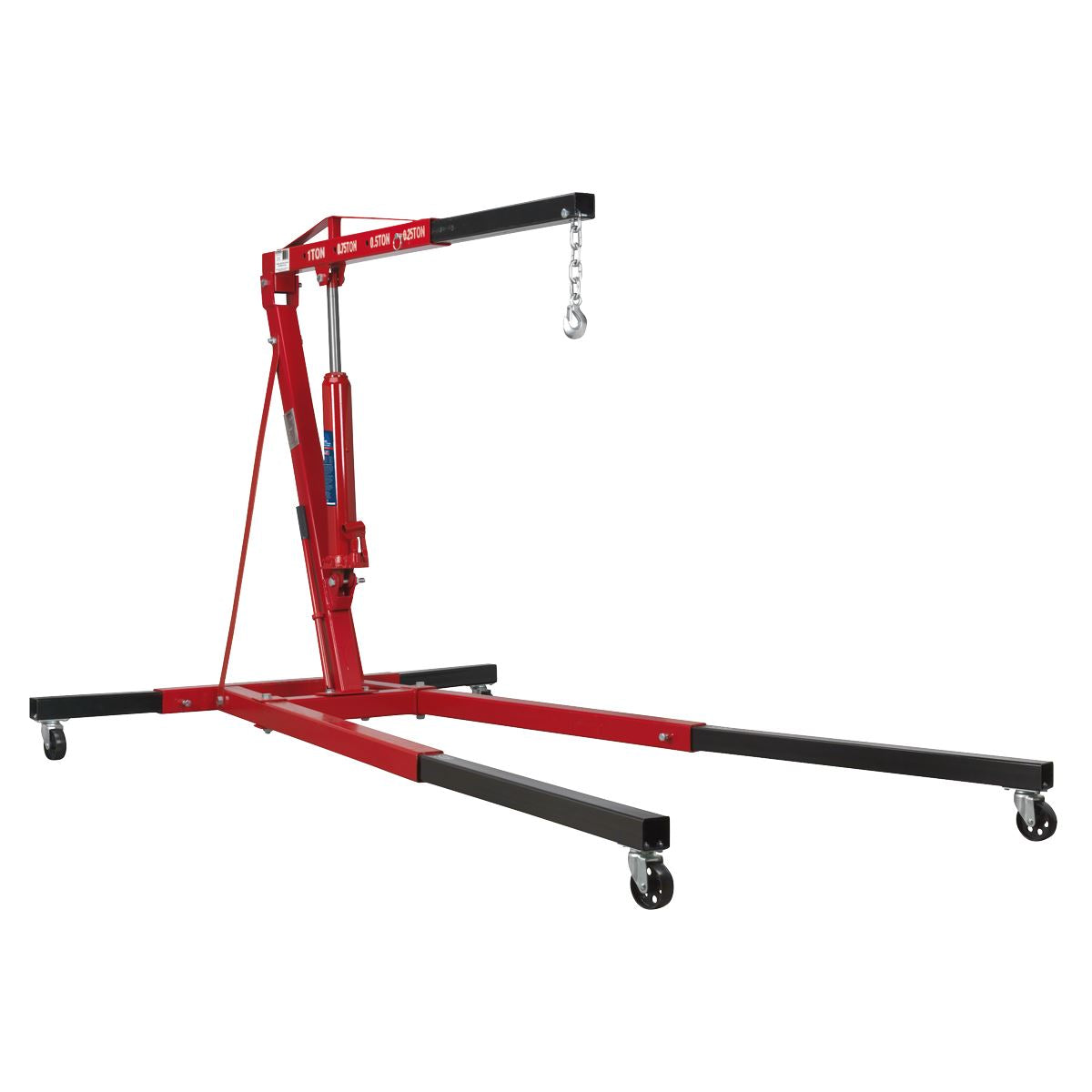

Sealey SC10LR Long Reach Engine Crane with Extendable Legs 1 Tonne

Delivered in knock-down form for reduced freight cost. Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm. Side pump access with removable handle.

Product Specification

• Brand: Sealey
• Height Jib Down: 1446mm
• Height of Frame: 180mm
• Length Legs Extended: 1600mm
• Length of Jib Position 1: 937mm
• Length of Jib Position 2: 1107mm
• Length of Jib Position 3: 1277mm
• Length of Jib Position 4: 1447mm
• Length of Jib Position 5: n/a
• Length: 1450mm
• Lifting Capacity in Position 1: 1000kg
• Lifting Capacity in Position 2: 750kg
• Lifting Capacity in Position 3: 500kg
• Lifting Capacity in Position 4: 250kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 1750mm
• Max. Lift Ht at Jib Position 2: 1850mm
• Max. Lift Ht at Jib Position 3: 1950mm
• Max. Lift Ht at Jib Position 4: 2050mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 81.5kg
• Rear Width: 860/1160mm
• Width Front Frame: 690-720mm
• Width Inside Front Frame: 381/605mm
• Width Inside Front Frame: 660/1010mm
