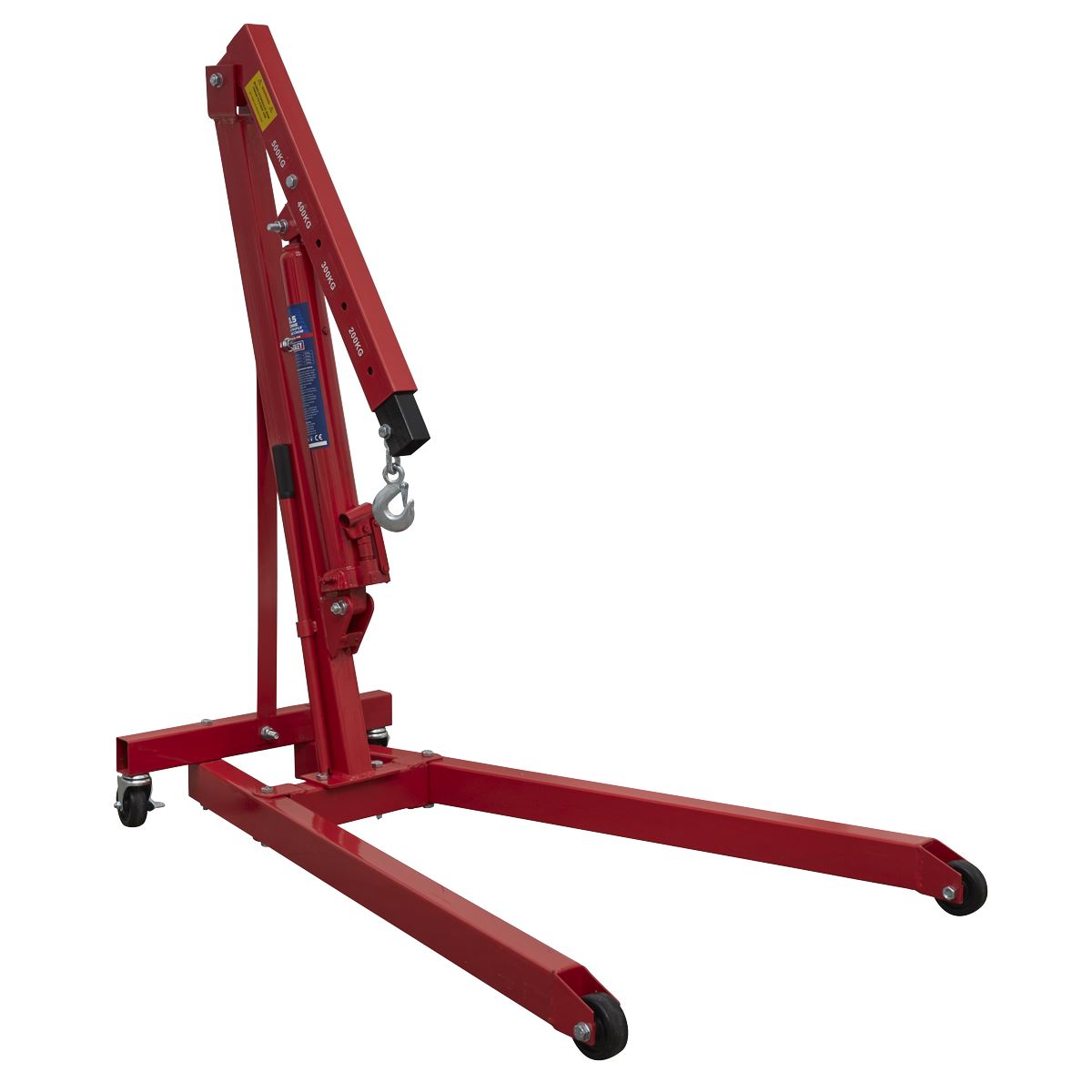

Sealey PH5 Low Profile Engine Crane 0.5 Tonne

Low entry engine crane with a height of only 100mm at the wheels. Weighs only 37kg so is extremely lightweight and manoeuvrable. Heavy-duty castors and pump access from side, for safe handling of loads. Delivered in knock-down form to reduce freight costs, some self-assembly required.

Product Specification

• Brand: Sealey
• Height Jib Down: 1330mm
• Height Legs Folded: n/a
• Height of Frame: 100mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 750mm
• Length of Jib Position 2: 860mm
• Length of Jib Position 3: 980mm
• Length of Jib Position 4: 1100mm
• Length of Jib Position 5: n/a
• Length: 1210mm
• Lifting Capacity in Position 1: 500kg
• Lifting Capacity in Position 2: 400kg
• Lifting Capacity in Position 3: 300kg
• Lifting Capacity in Position 4: 200kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 1950mm
• Max. Lift Ht at Jib Position 2: 2050mm
• Max. Lift Ht at Jib Position 3: 2150mm
• Max. Lift Ht at Jib Position 4: 2250mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 37kg
• Rear Width: 550mm
• Width Front Frame: 800mm
• Width Inside Front Frame: 700mm
