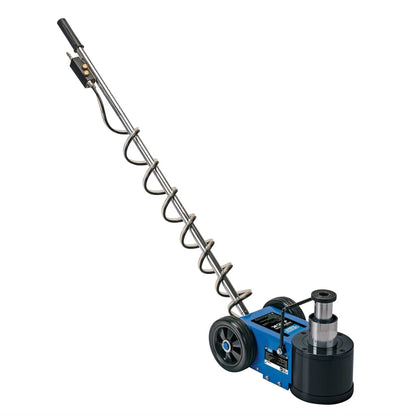

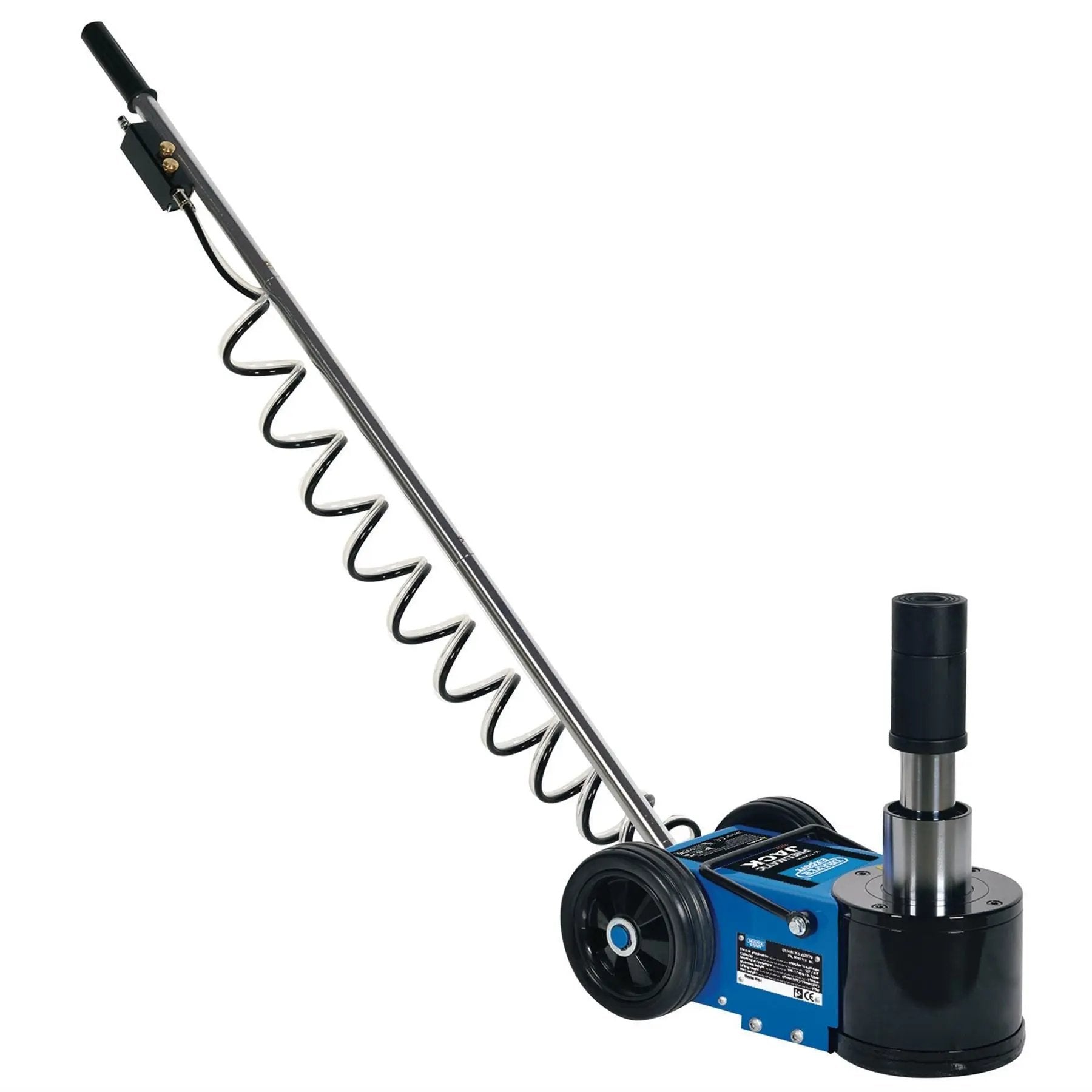

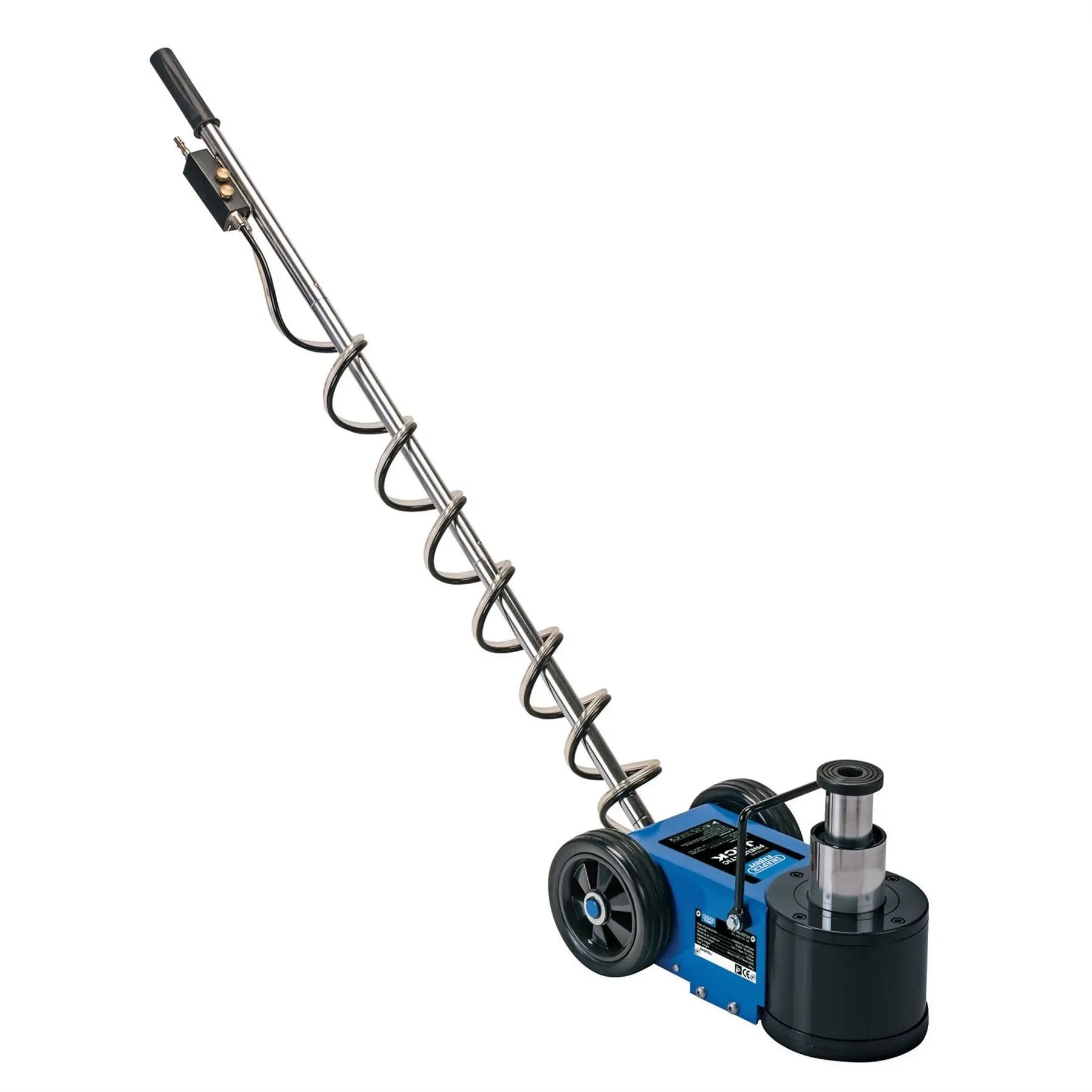

Draper 03724 Pneumatic Jack 30 Tonne

Expert Quality portable and compact twin stage pneumatic jack capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack a safety overload valve and twin rubber coated wheels for a quieter and smoother operation whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured tested and certified to the current EN1494 standard.

Capacity stage 1: 30 Tonne (30000kg)
Capacity stage 2: 15 Tonne (15000kg)
Minimum height: 150mm
Maximum height stage 1: 343mm (inc extensions)
Maximum height stage 2: 409mm (inc extensions)
Lift height stage 1: 73mm
Lift height stage 2: 66mm
Operating air pressure: 9 - 12BAR (130 - 174psi)
Air consumption: 10.5cfm
Air inlet: 1/4" BSP
Wheel diameter: 165mm
Wheel width: 42.5mm
Saddle diameter: 70mm

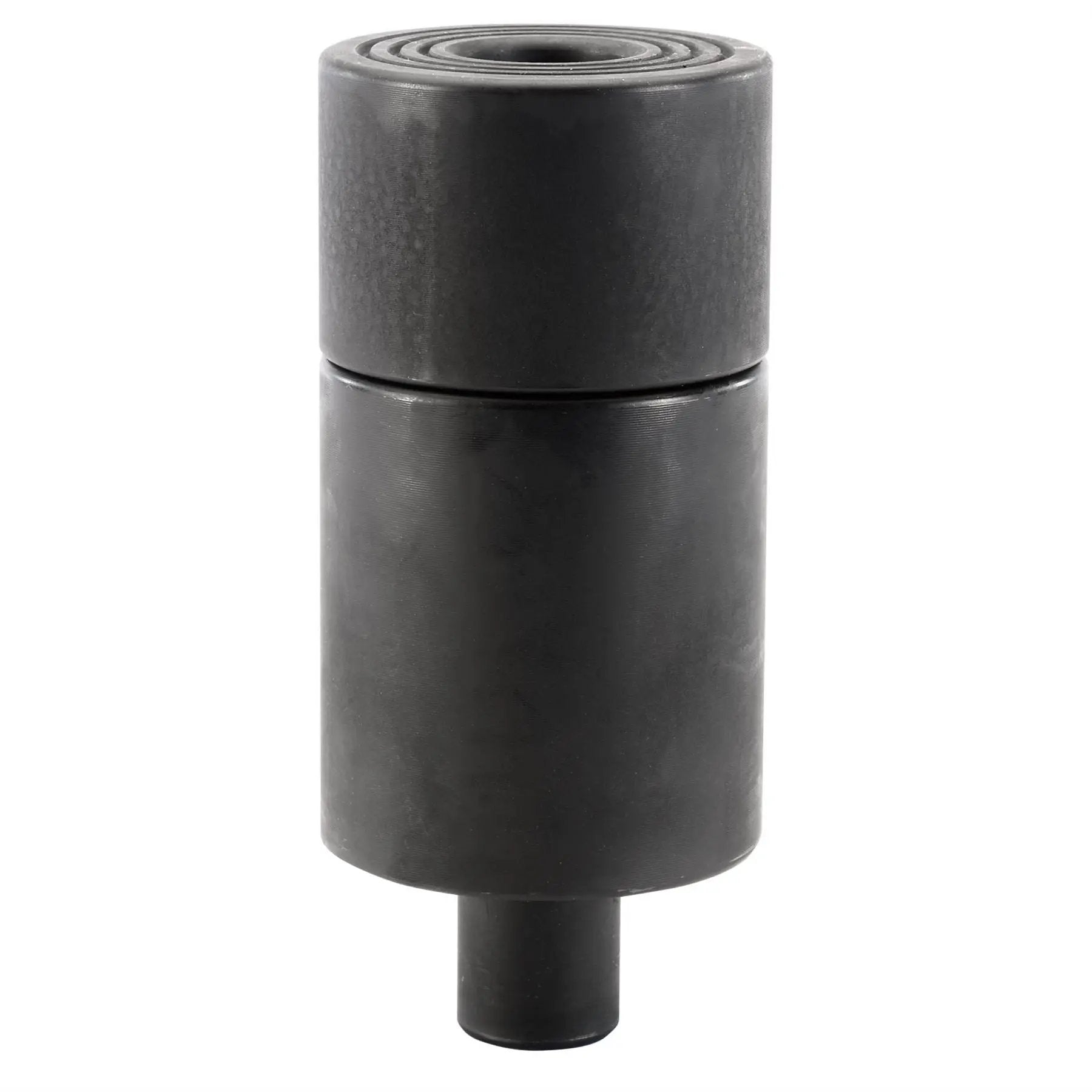

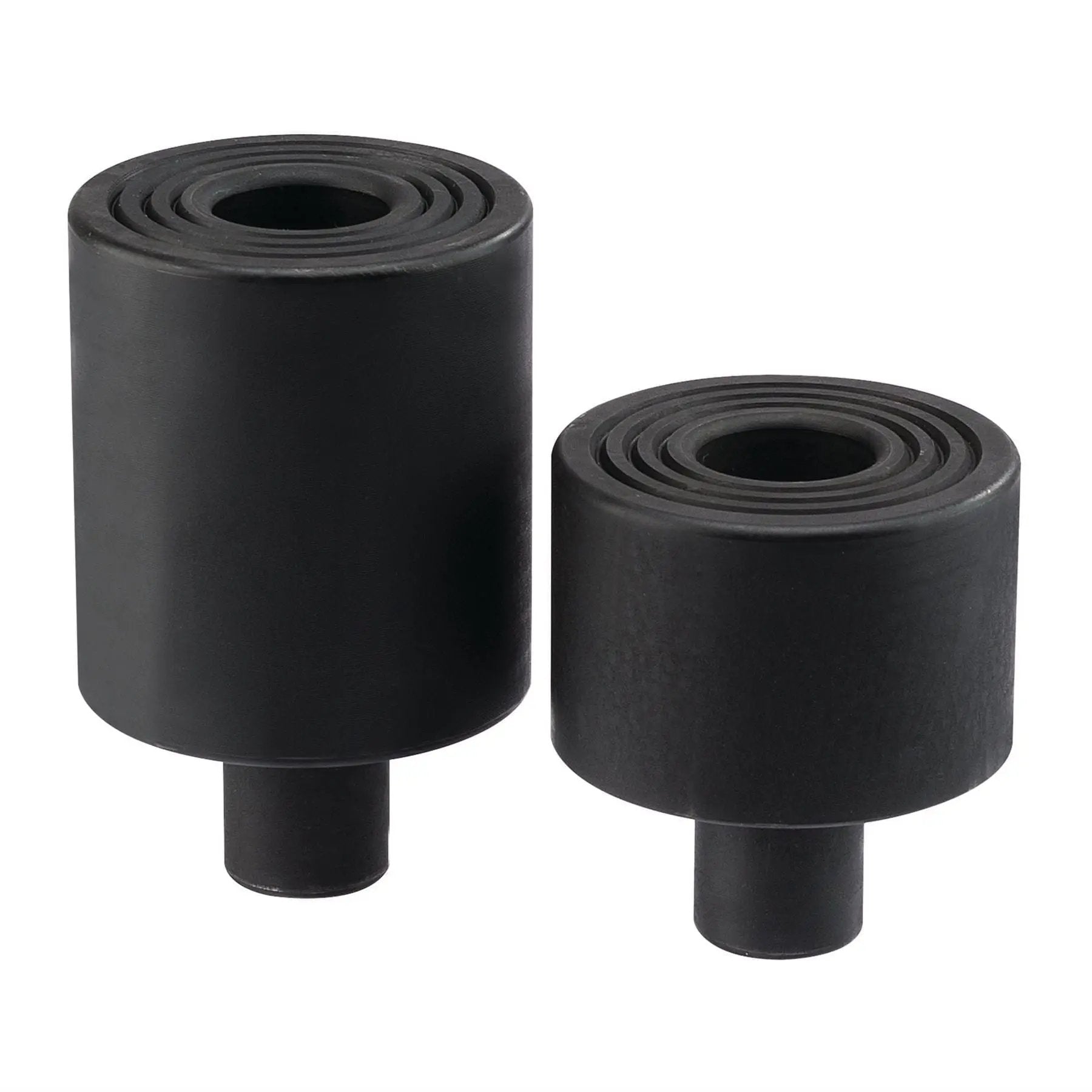

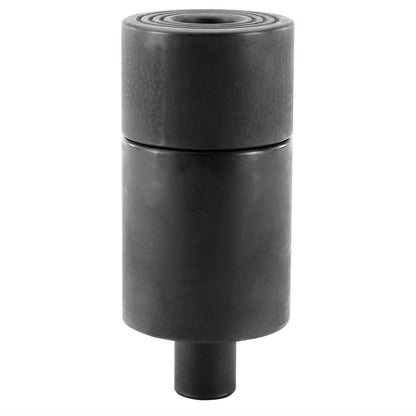

Extensions: 45mm and 75mm
Handle length: 1200mm
Chassis size: 430 x 176 x 150mm
Nett weight: 30kg
