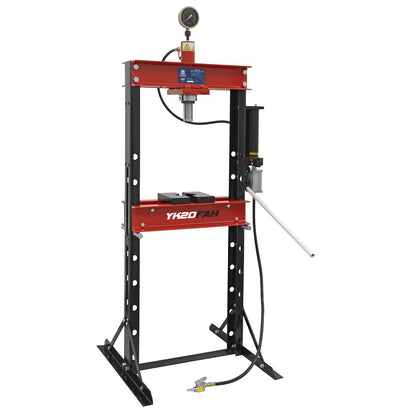

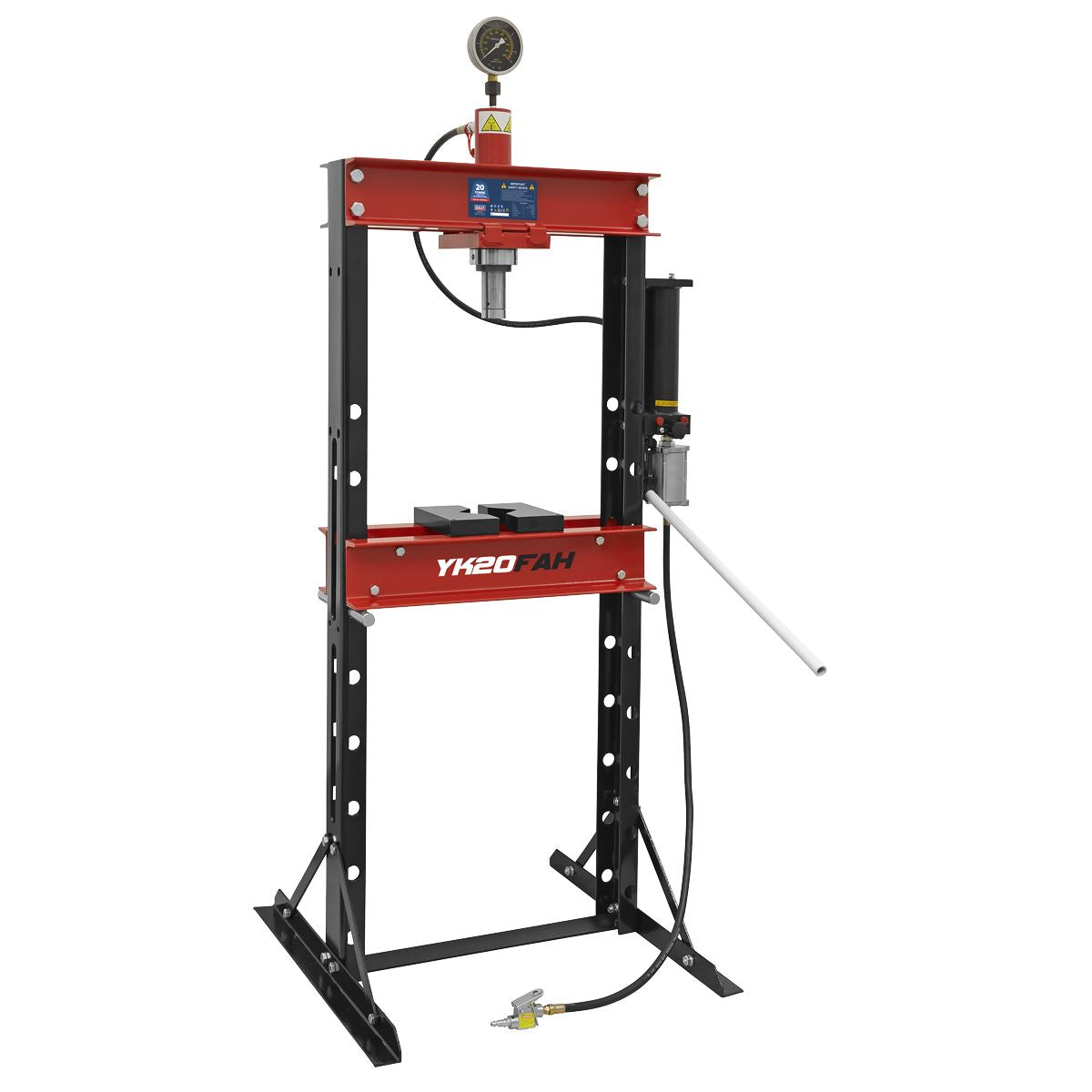

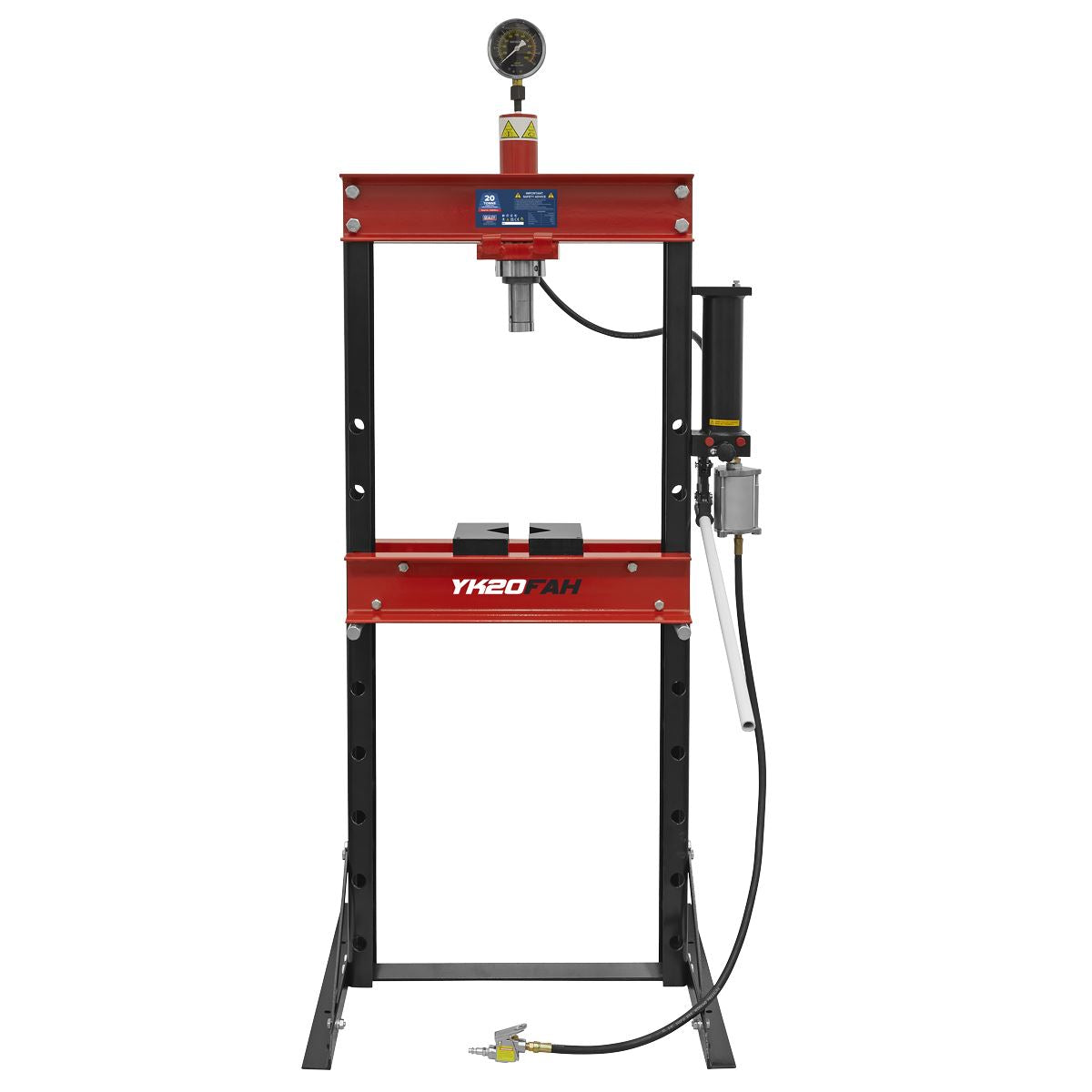

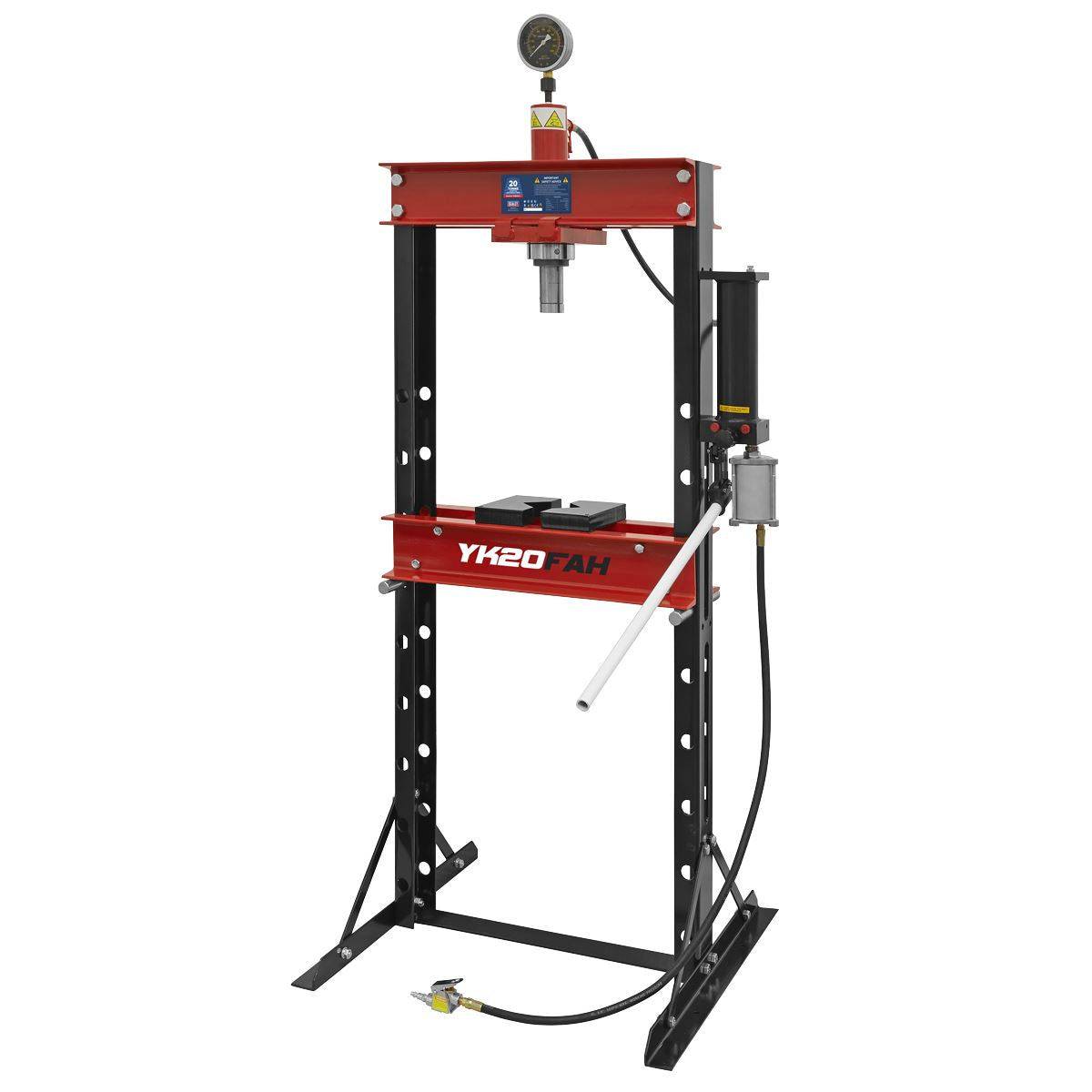

Sealey YK20FAH Air/Hydraulic Floor Type Press 20 Tonne

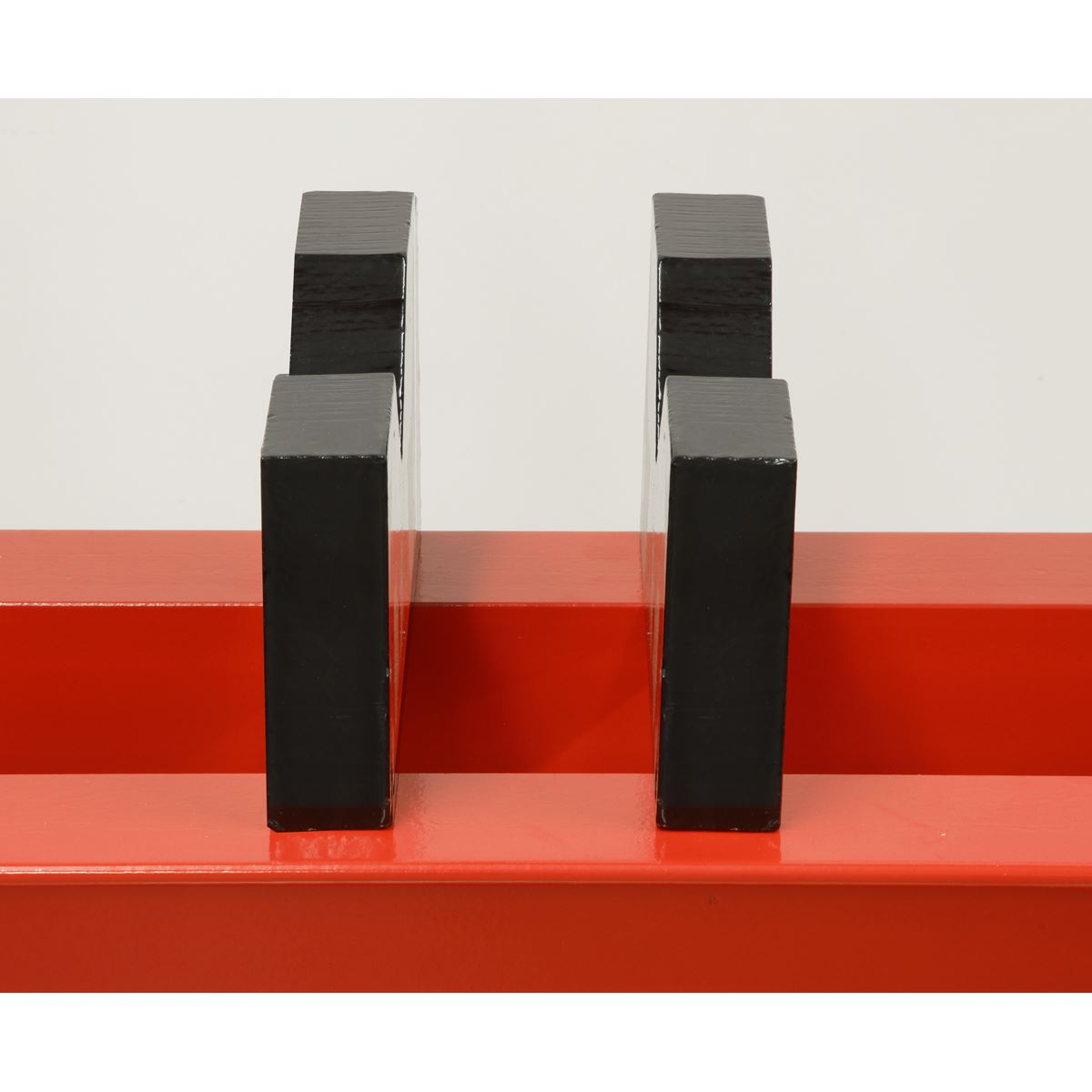

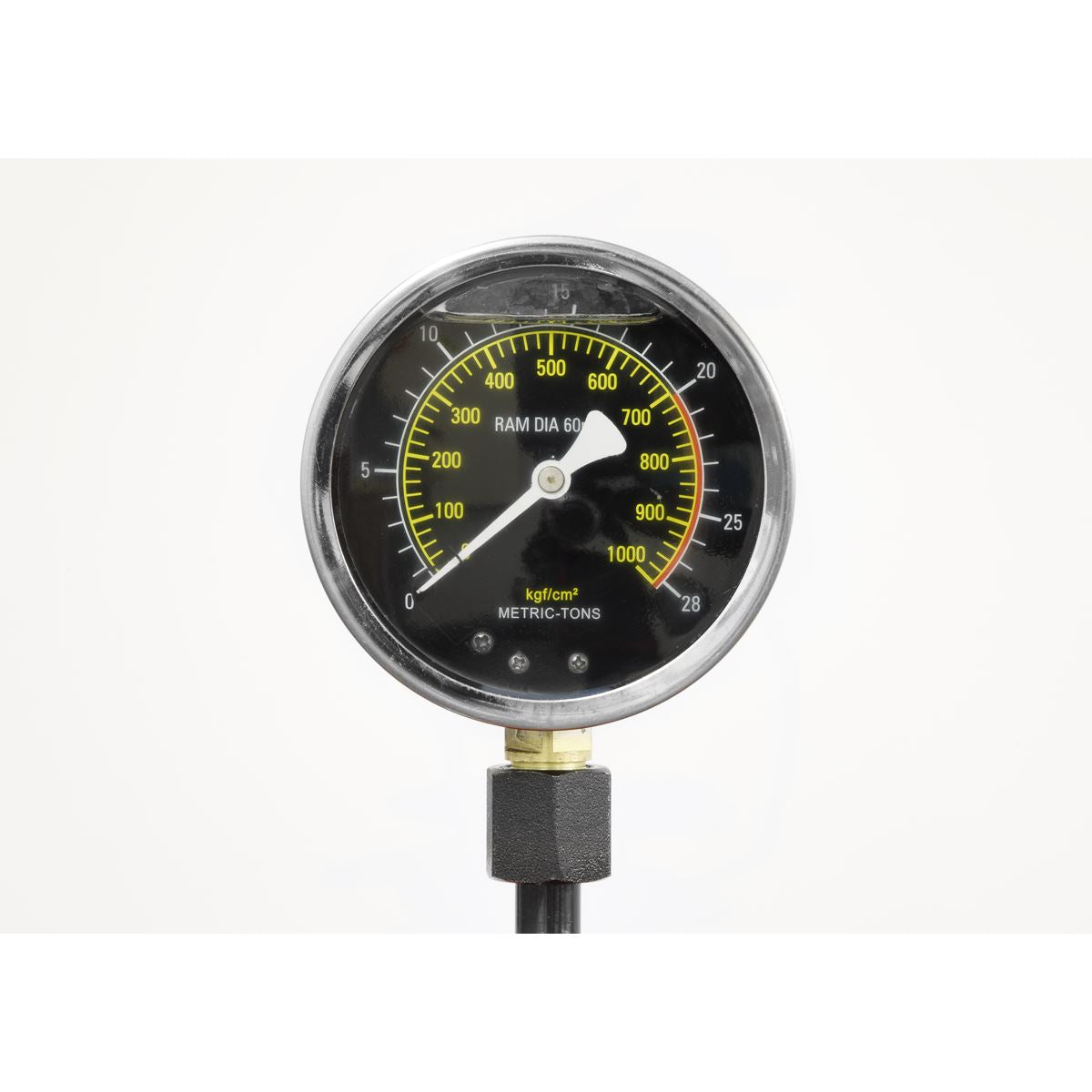

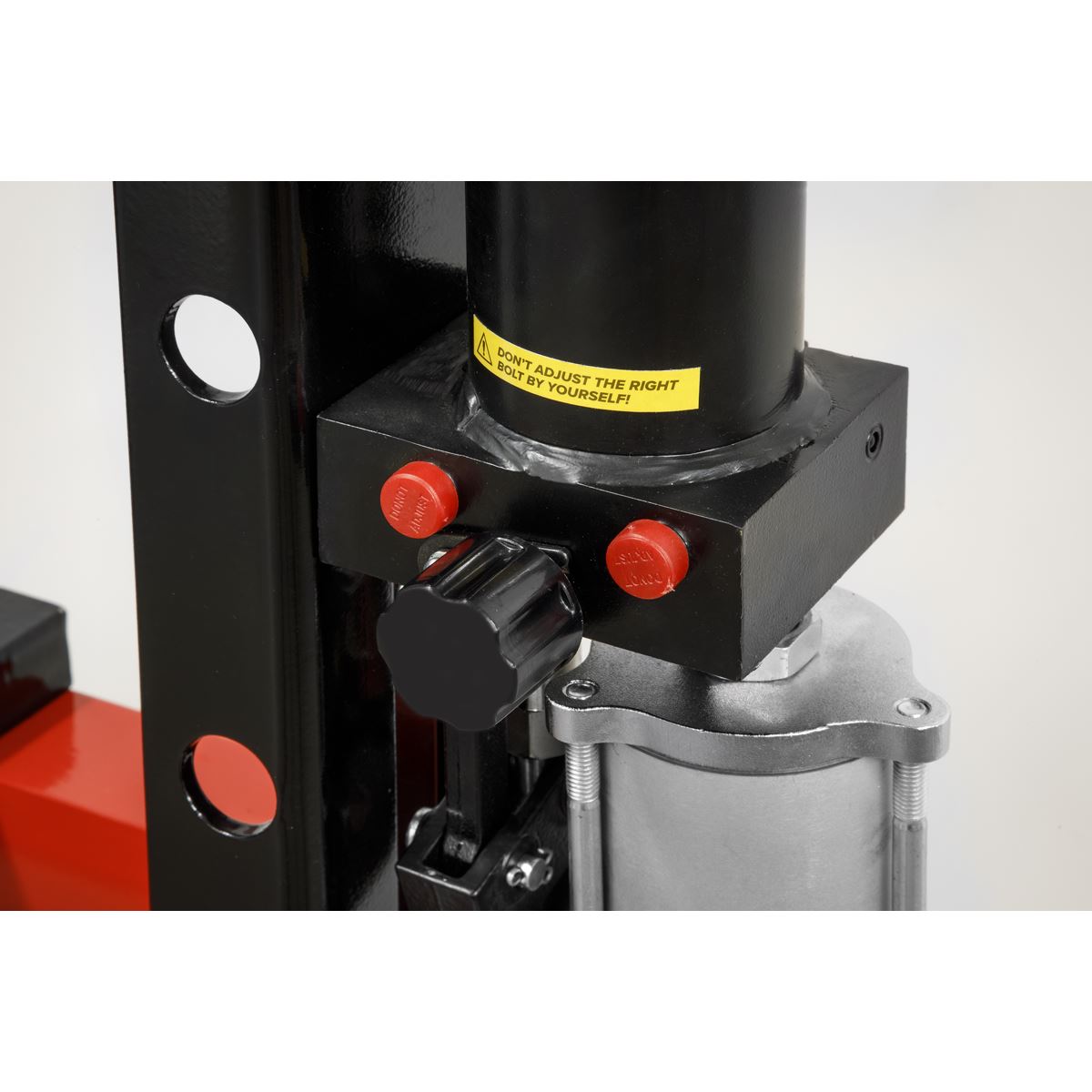

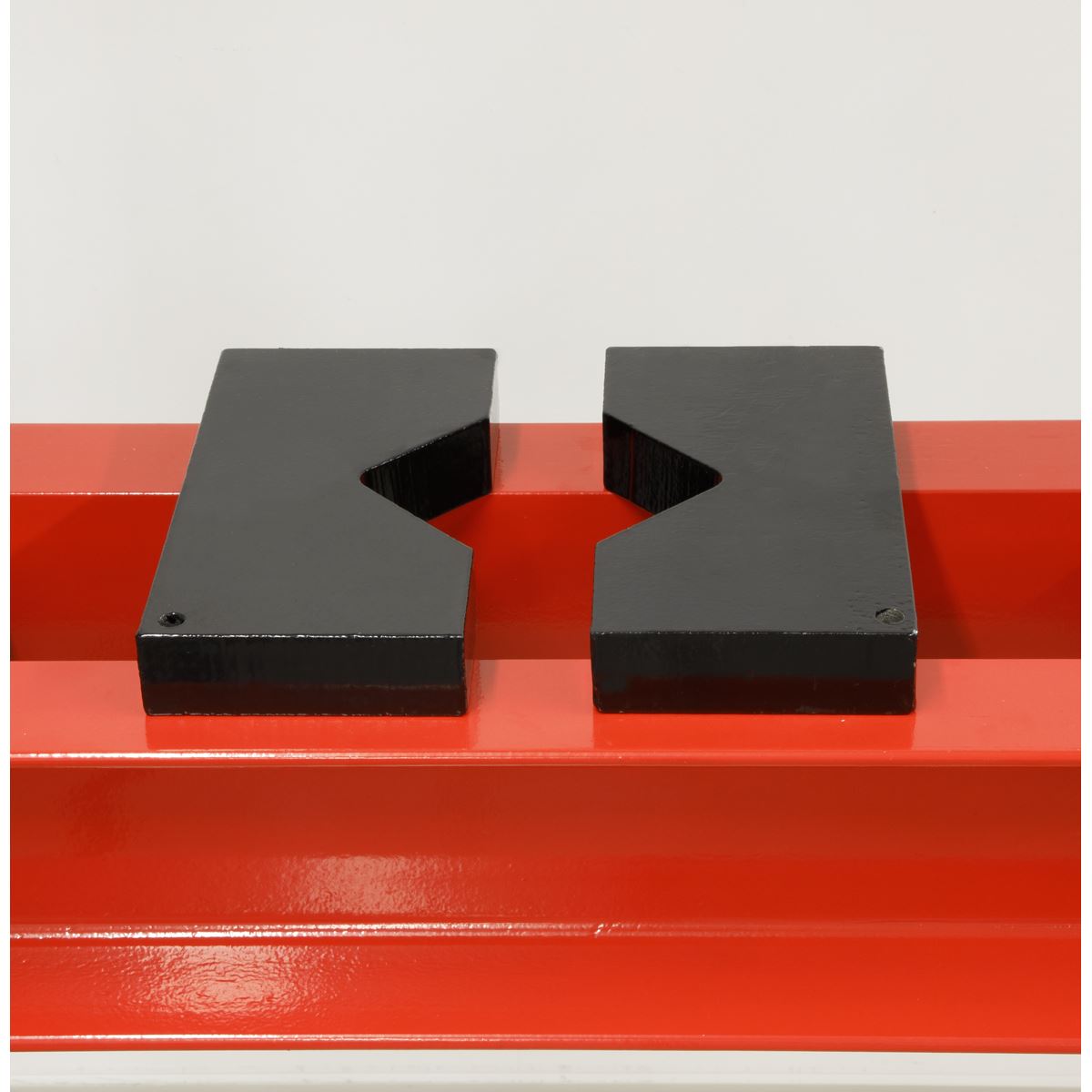

Steel frame construction with side mounted, air motor powering hydraulic pump unit. Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

Product Specification

• Air Consumption: 7.06cfm
• Bench or Floor Mounting: Floor
• Brand: Sealey
• Capacity: 20 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 403mm
• Maximum Height - Ram to Table: 1018mm
• Minimum Height - Ram to Table: 58mm
• Nett Weight: 93kg
• Operating Table Width: 542mm
• Optional Accessories: YKPP8 - Press Pin Set
• Overall Height: 1796mm
• Overall Width: 975mm
• Ram Diameter: Ø48mm
• Ram Stroke: 185mm
• Table Aperture: 100mm
• Type: Air/Hydraulic
• Working Table Depth: 206mm
• Working Table Width: 542mm
