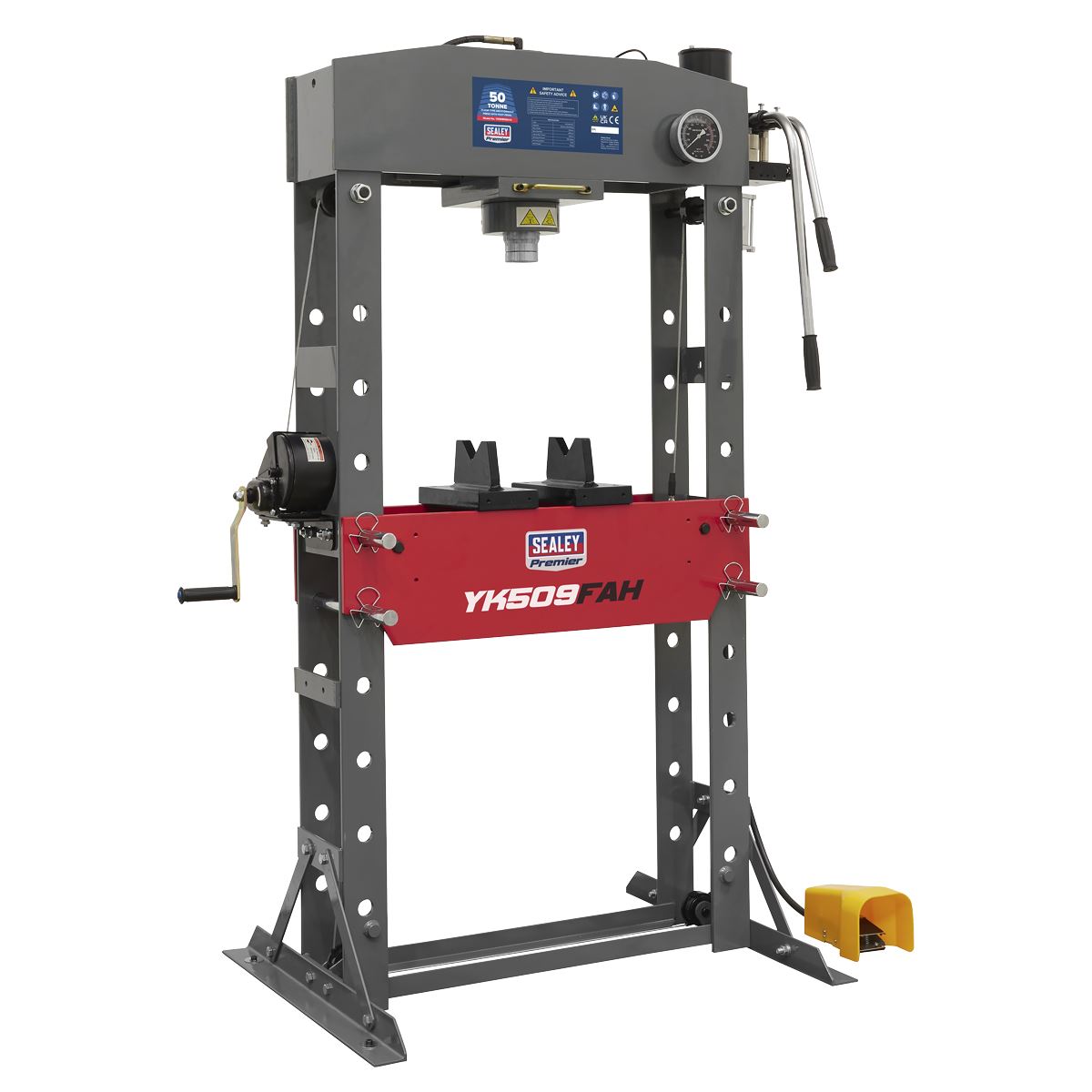

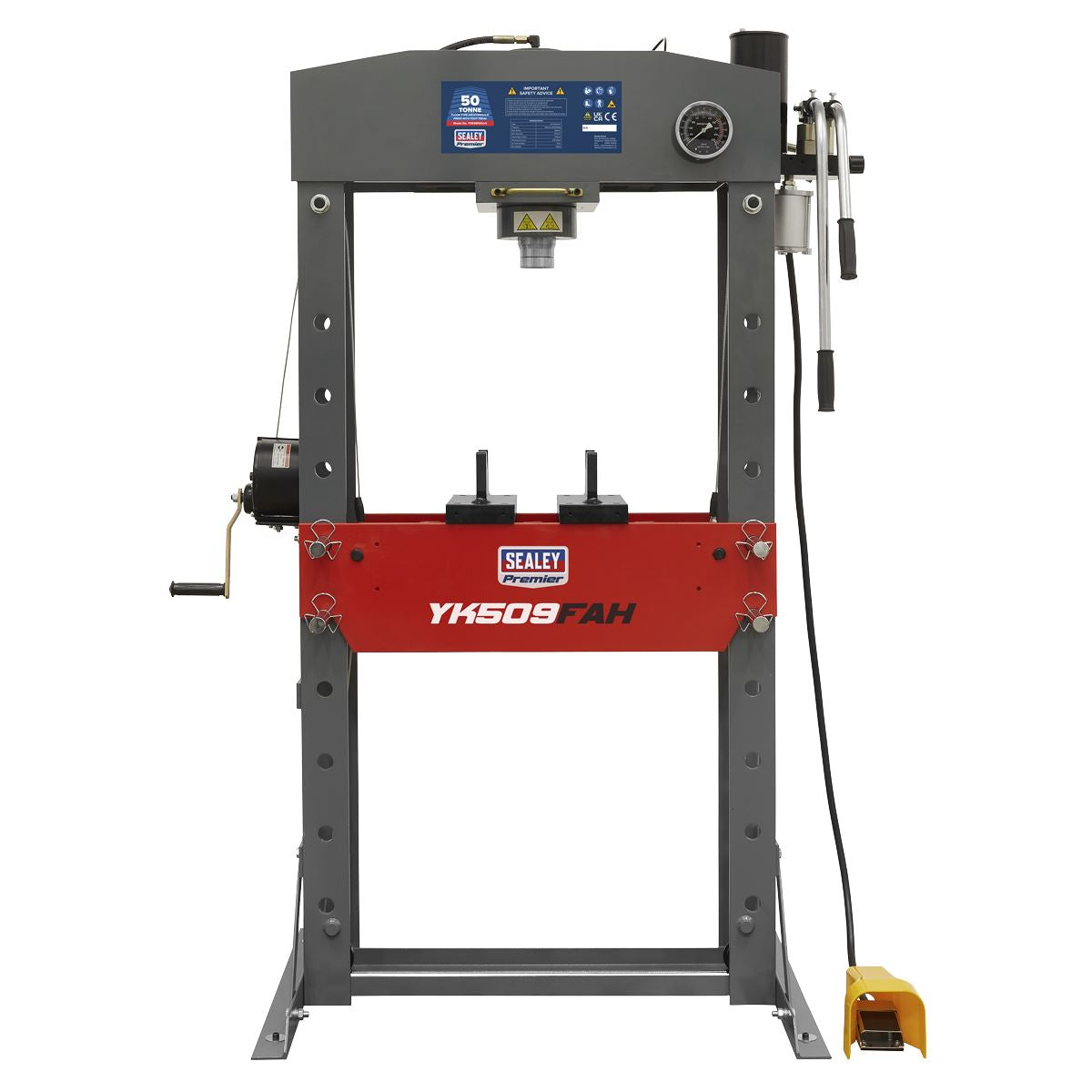

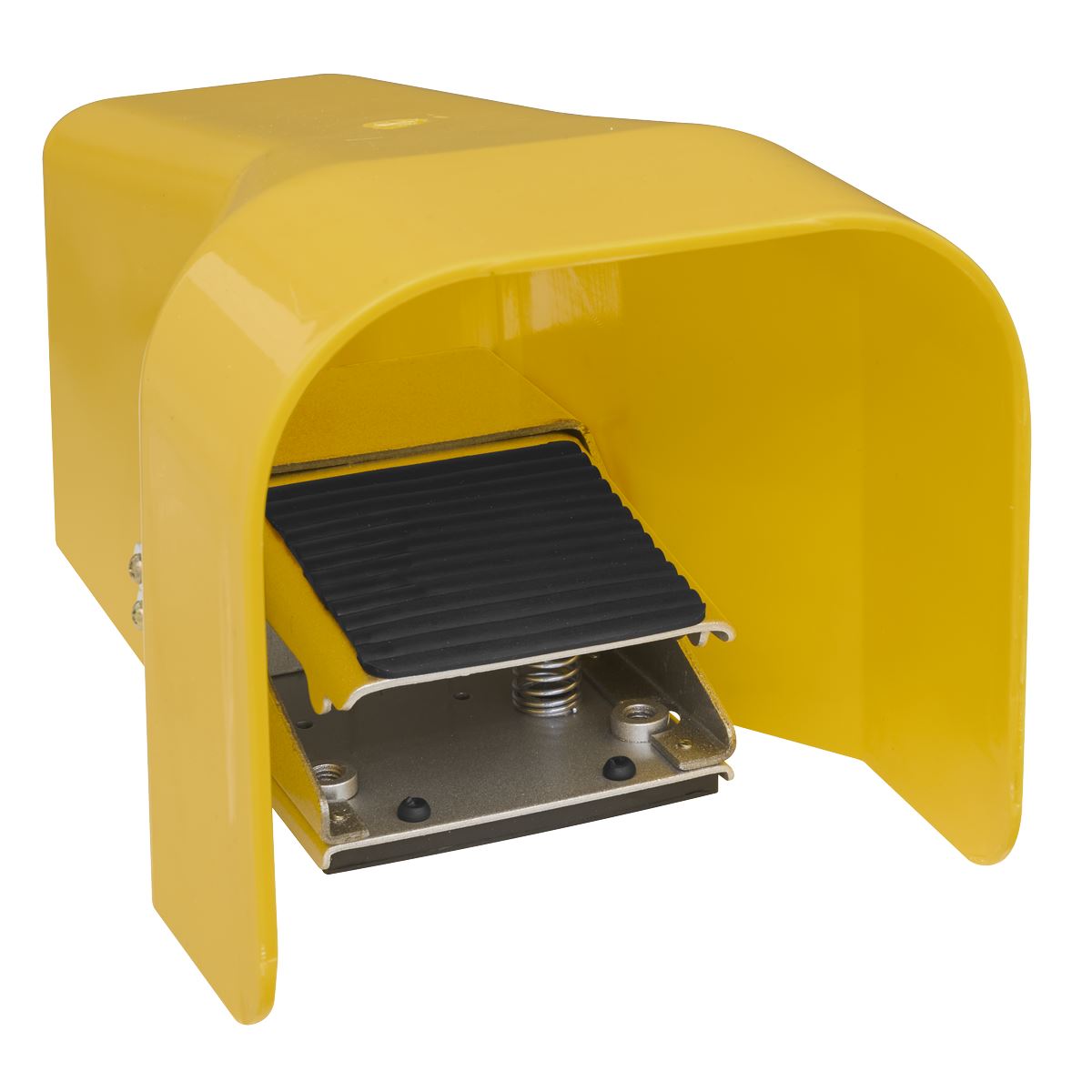

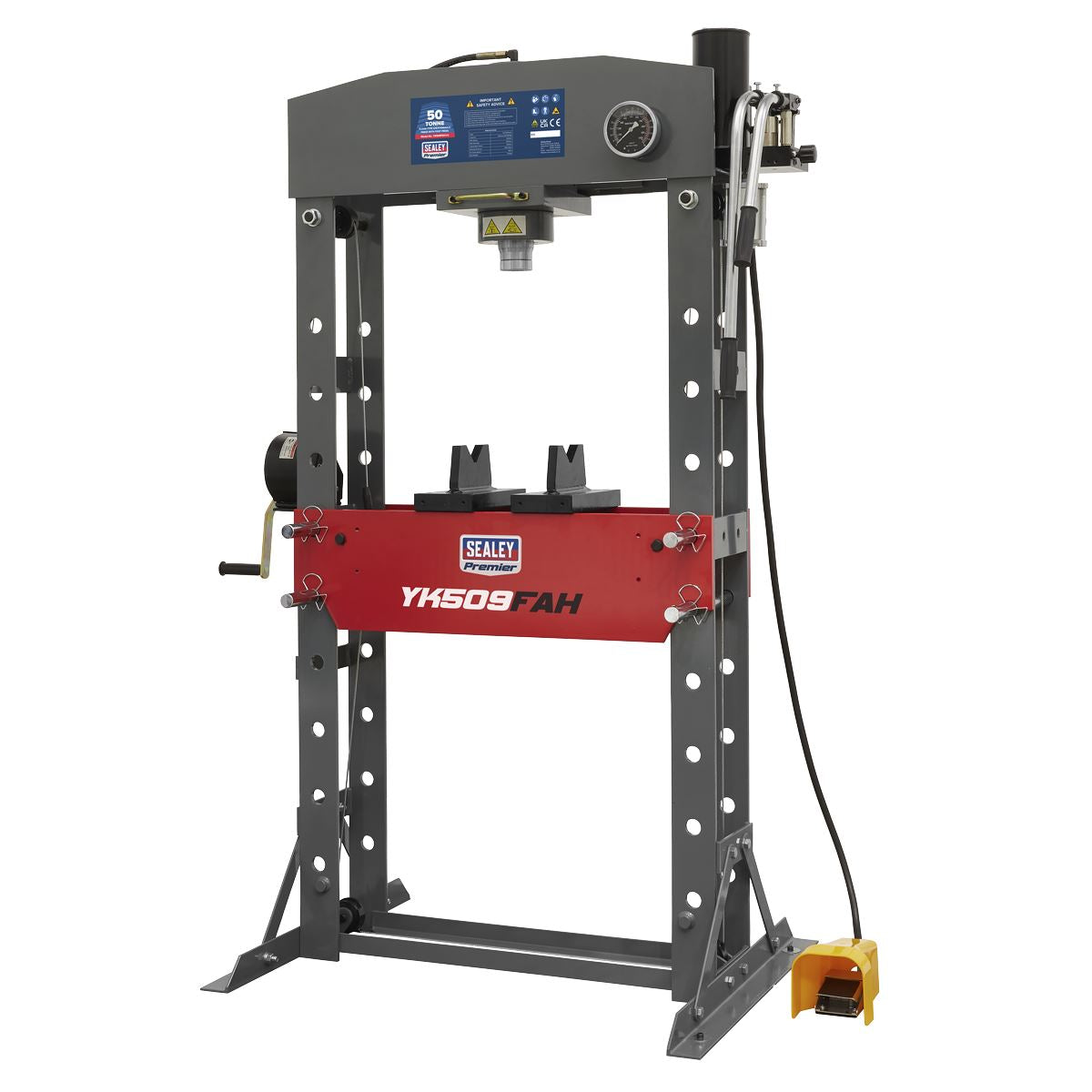

Sealey YK509FAH Premier Air/Hydraulic Floor Type Press with Foot Pedal 50 Tonne

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-speed manual operation and sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with table winch and flat pressing plate/V-blocks.

Product Specification

• Air Consumption: 7cfm
• Bench or Floor Mounting: Floor
• Brand: Premier
• Capacity: 50 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 245mm

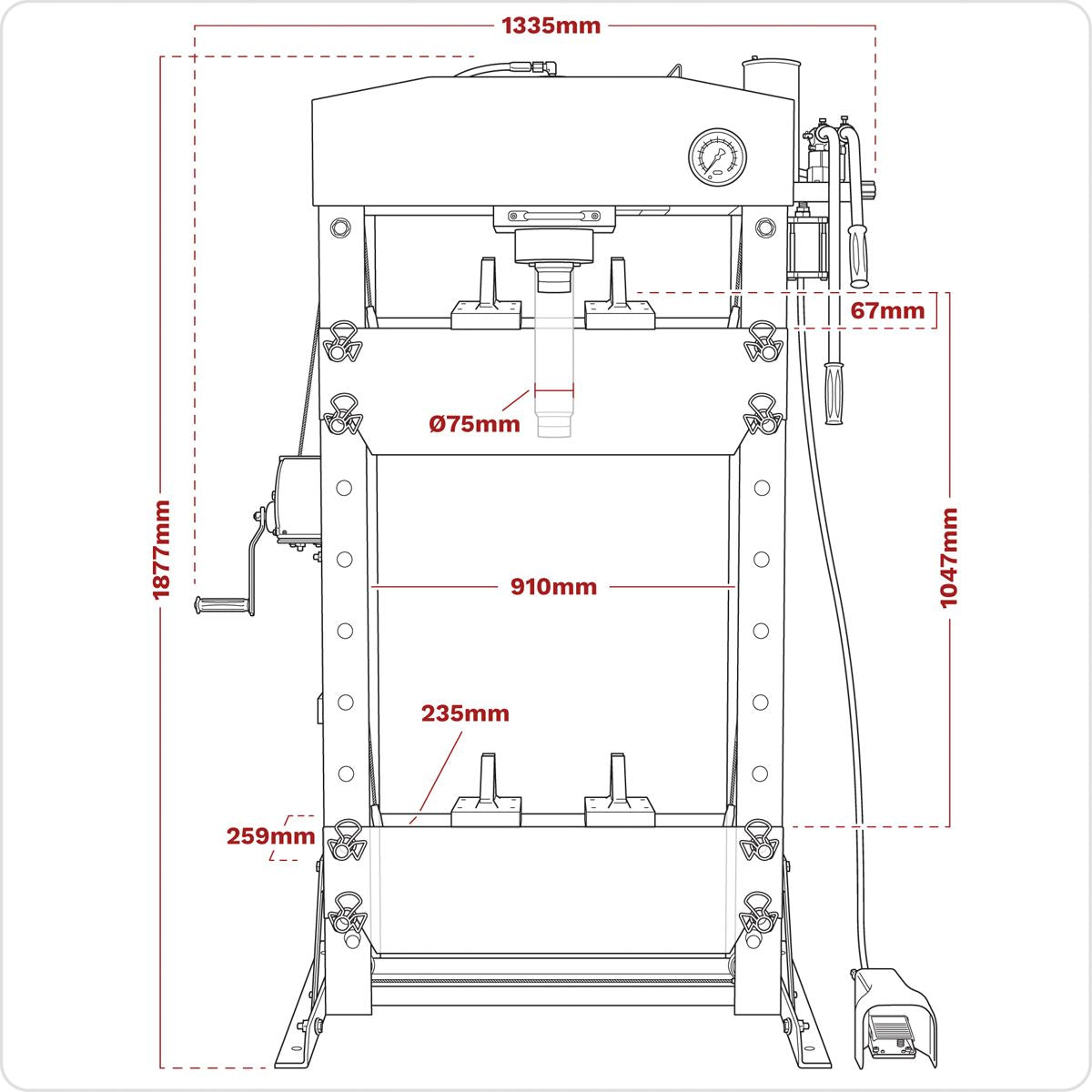

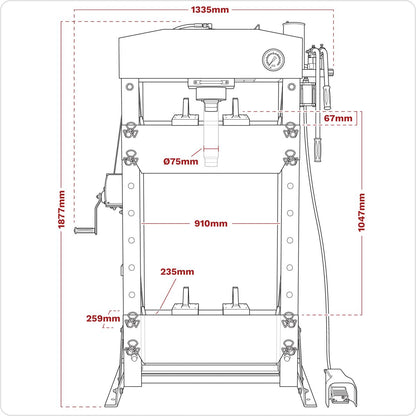

• Maximum Height - Ram to Table: 1047mm
• Minimum Height - Ram to Table: 67mm
• Nett Weight: 302.5kg
• Operating Table Width: 730mm
• Optional Accessories: YKSG50 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1877mm
• Overall Width: 1335mm
• Ram Diameter: Ø75mm
• Ram Stroke: 200mm
• Table Aperture: 235mm
• Type: Air/Hydraulic
• Warranty Information: This is test warranty information.
• Working Table Depth: 259mm
• Working Table Width: 910mm
