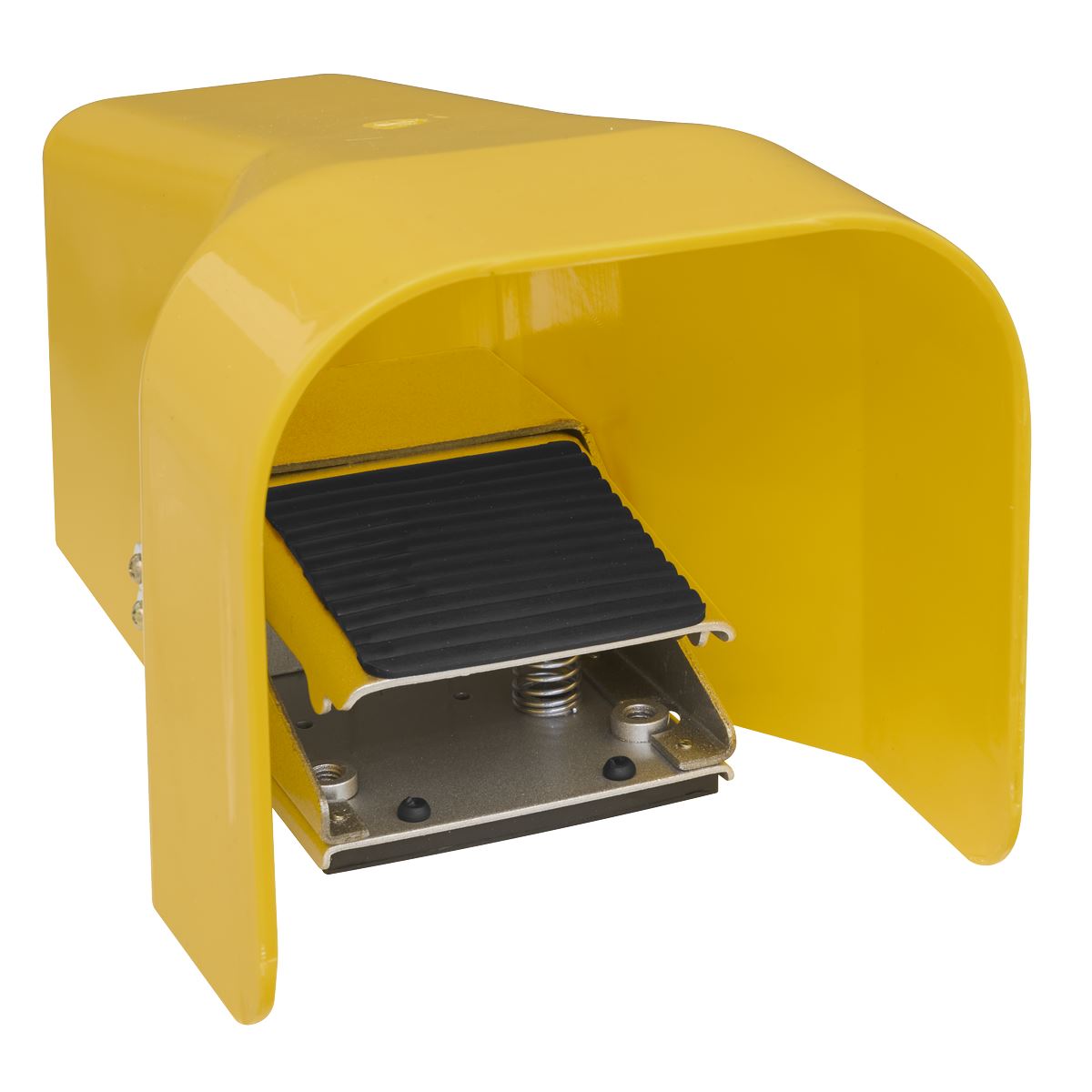

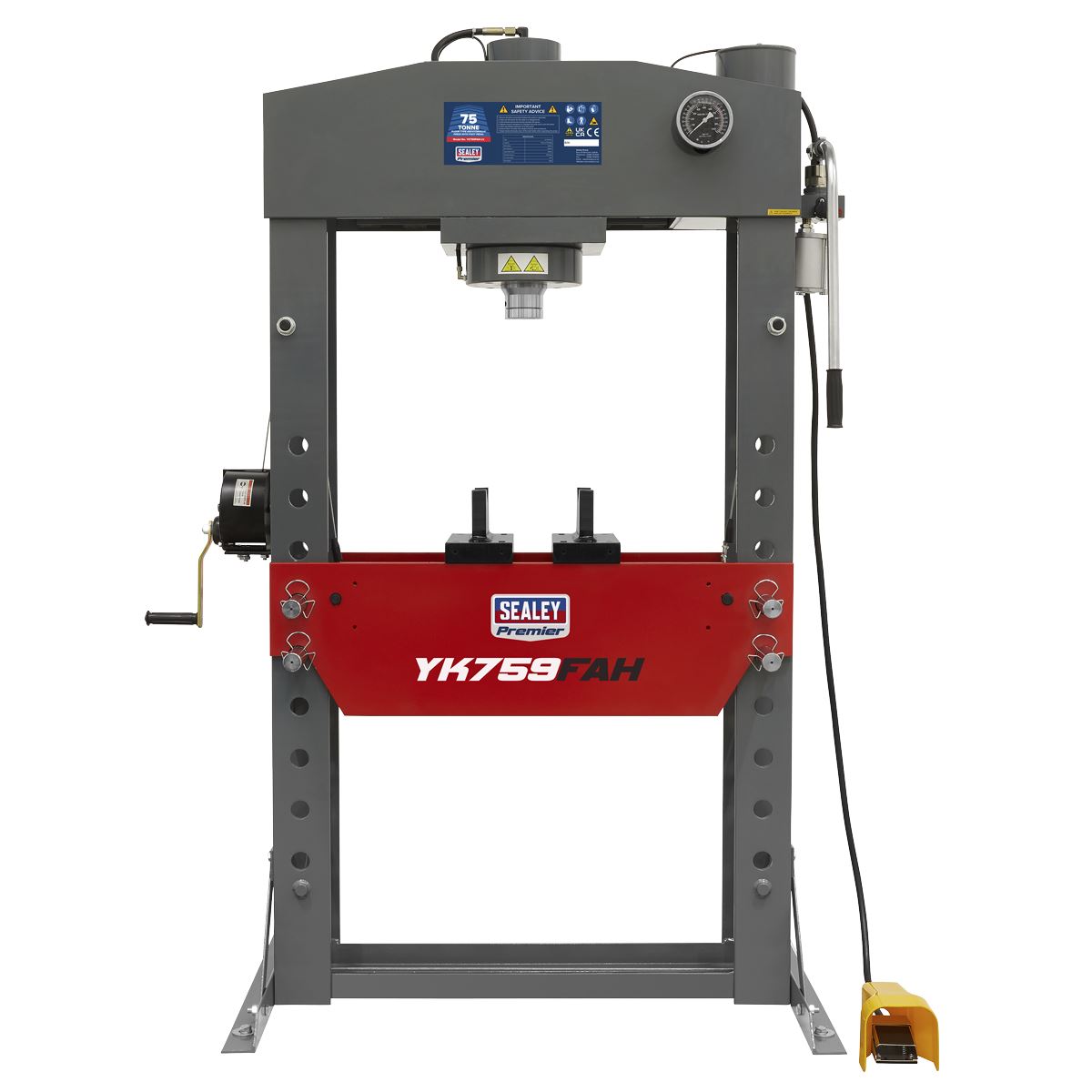

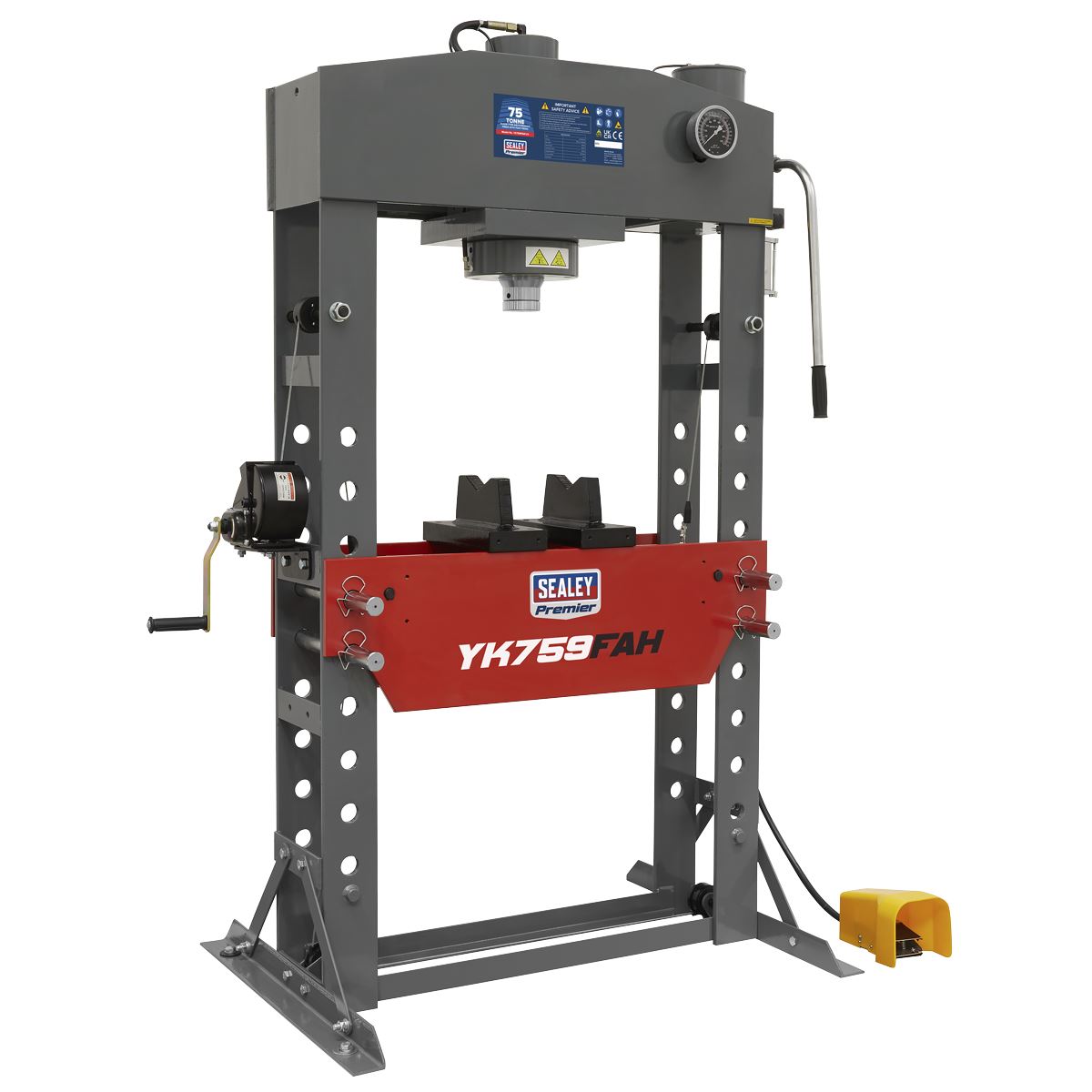

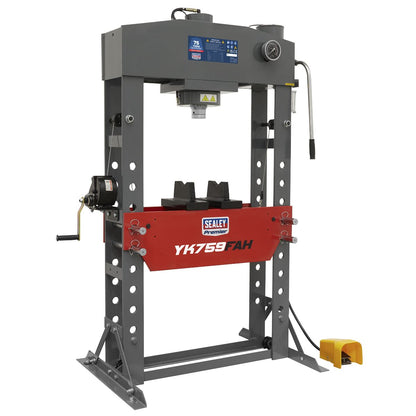

Sealey YK759FAH Premier Air/Hydraulic Floor Type Press with Foot Pedal 75 Tonne

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-Speed manual operation and sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

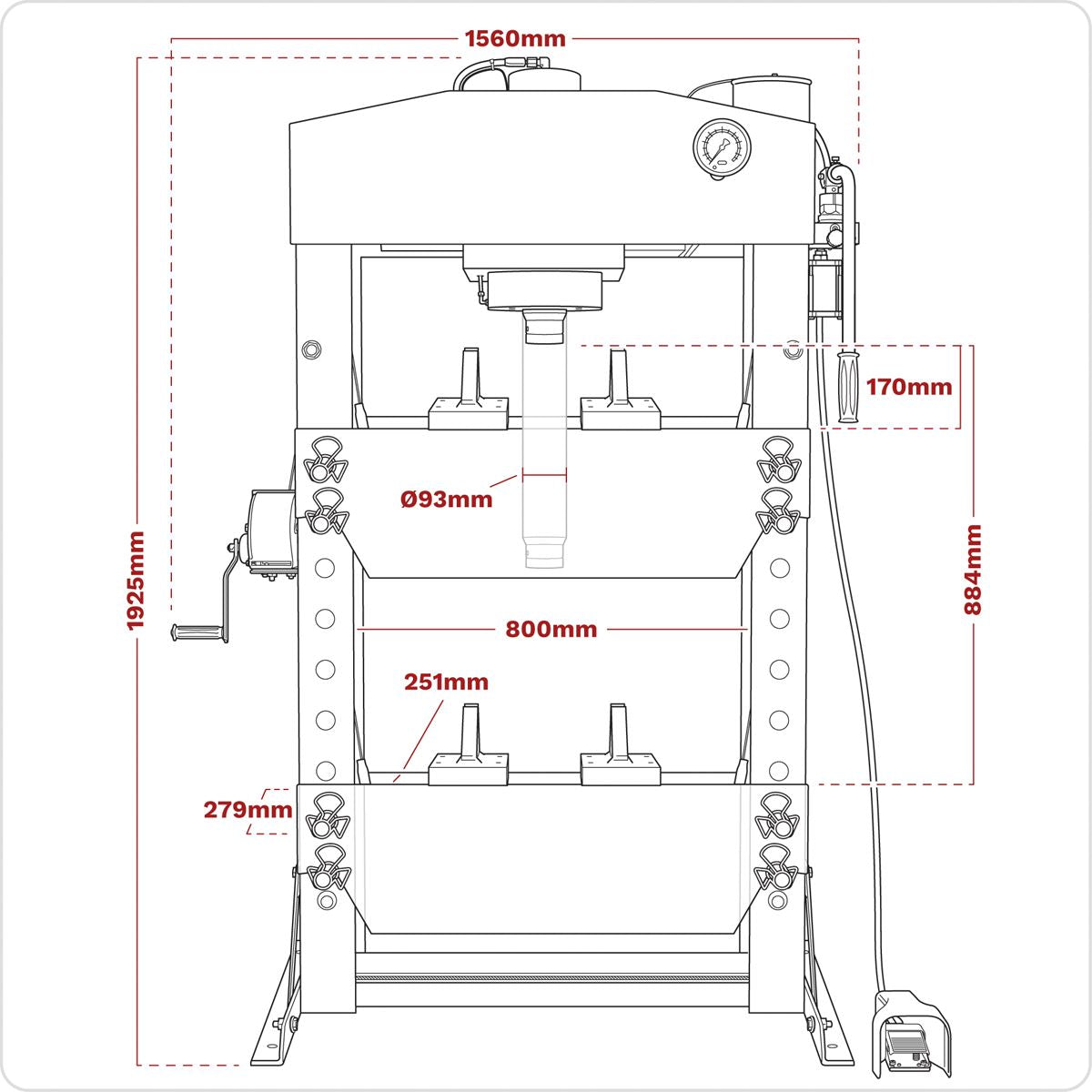

Product Specification

• Air Consumption: 7cfm
• Bench or Floor Mounting: Floor
• Brand: Premier
• Capacity: 75 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 260mm
• Maximum Height - Ram to Table: 884mm
• Minimum Height - Ram to Table: 170mm
• Nett Weight: 451kg
• Operating Table Width: 800mm
• Optional Accessories: YKSG75 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1925mm
• Overall Width: 1560mm
• Ram Diameter: Ø93mm
• Ram Stroke: 250mm
• Table Aperture: 251mm
• Type: Air/Hydraulic
• Working Table Depth: 279mm
• Working Table Width: 800mm
