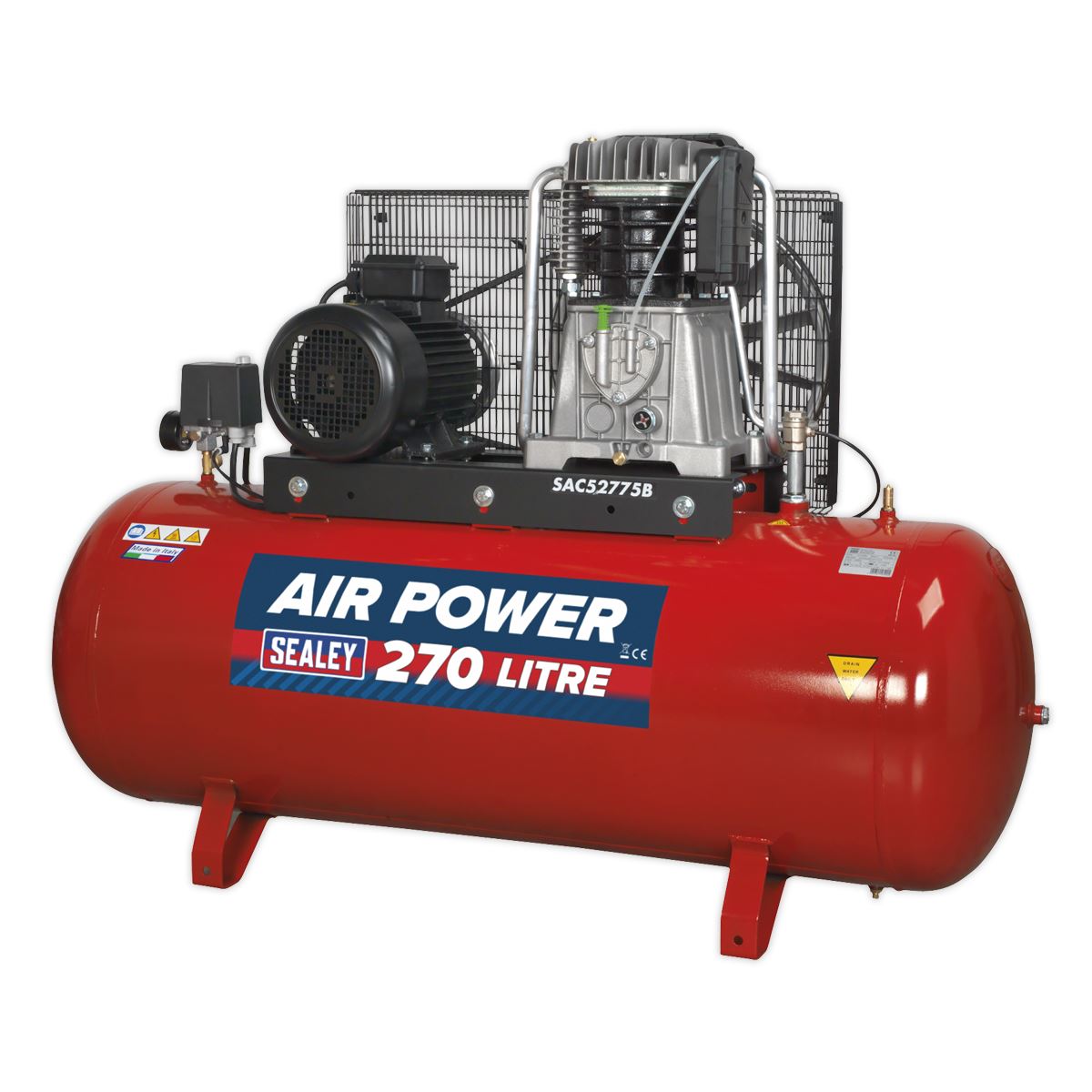

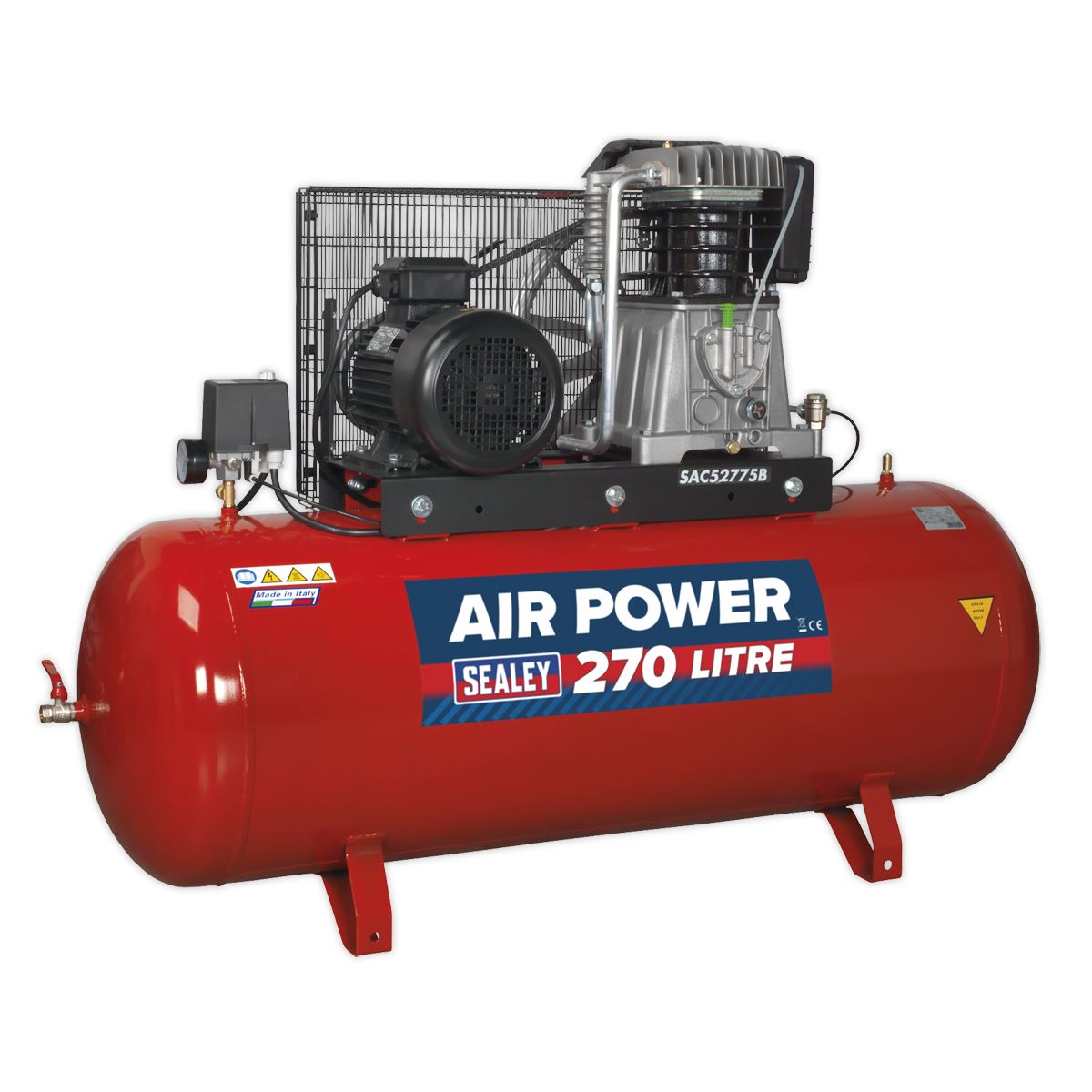

Sealey SAC52775B Air Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.

Product Specification

• Air Displacement cfm(L/min): 29.7(841)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 21.5(609)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 7.5hp
• Nett Weight: 143kg
• Oil Capacity: 1.57L
• Outlet: 1/2"BSP Female Tap
• Phase: 3ph
• Receiver Capacity: 270L
• Size (W x D x H): 1550 x 510 x 1070mm
• Speed: 1280rpm
• Supply: 415V/32A
