Sealey TA202 Digital Automotive Analyser 14-Function with Inductive Coupler

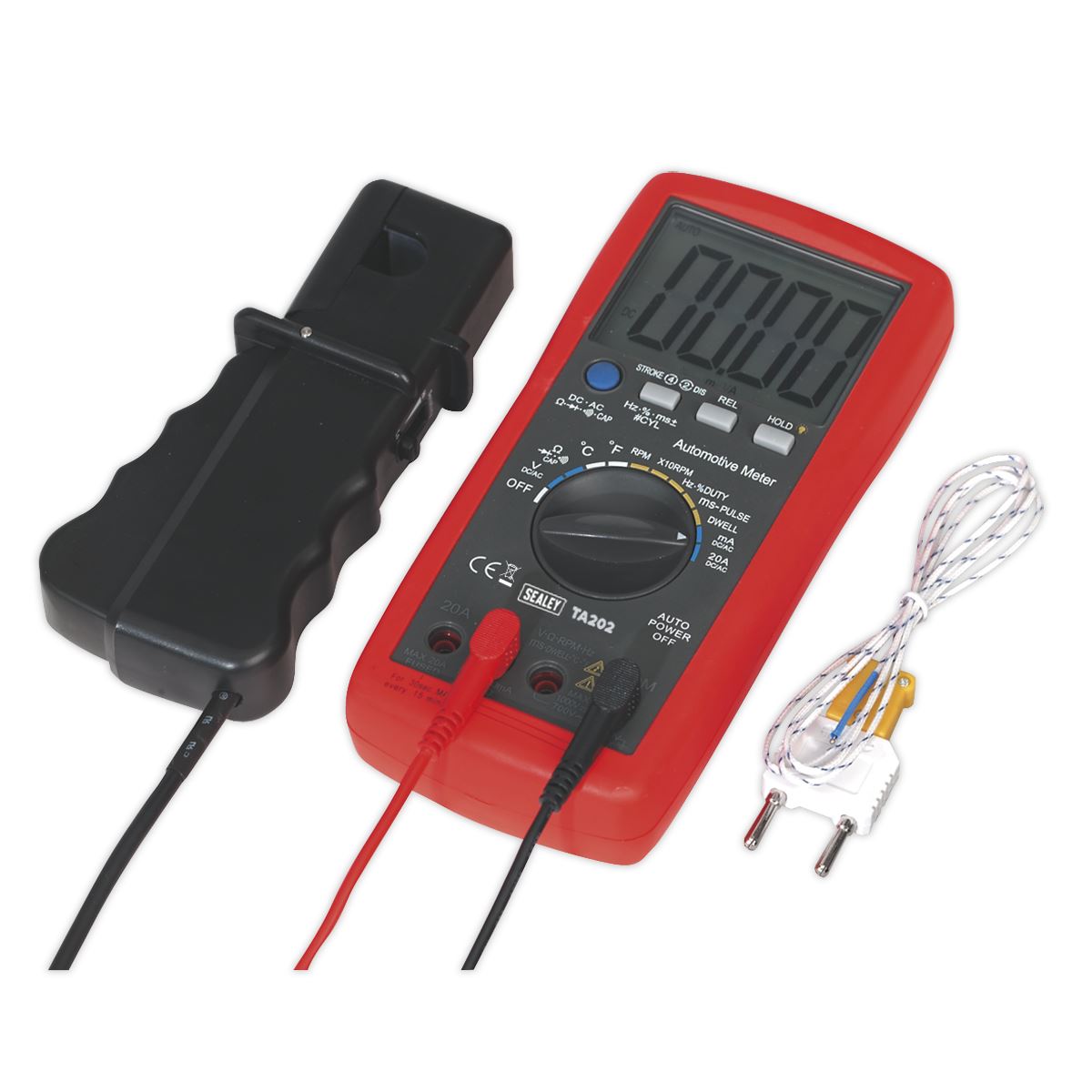

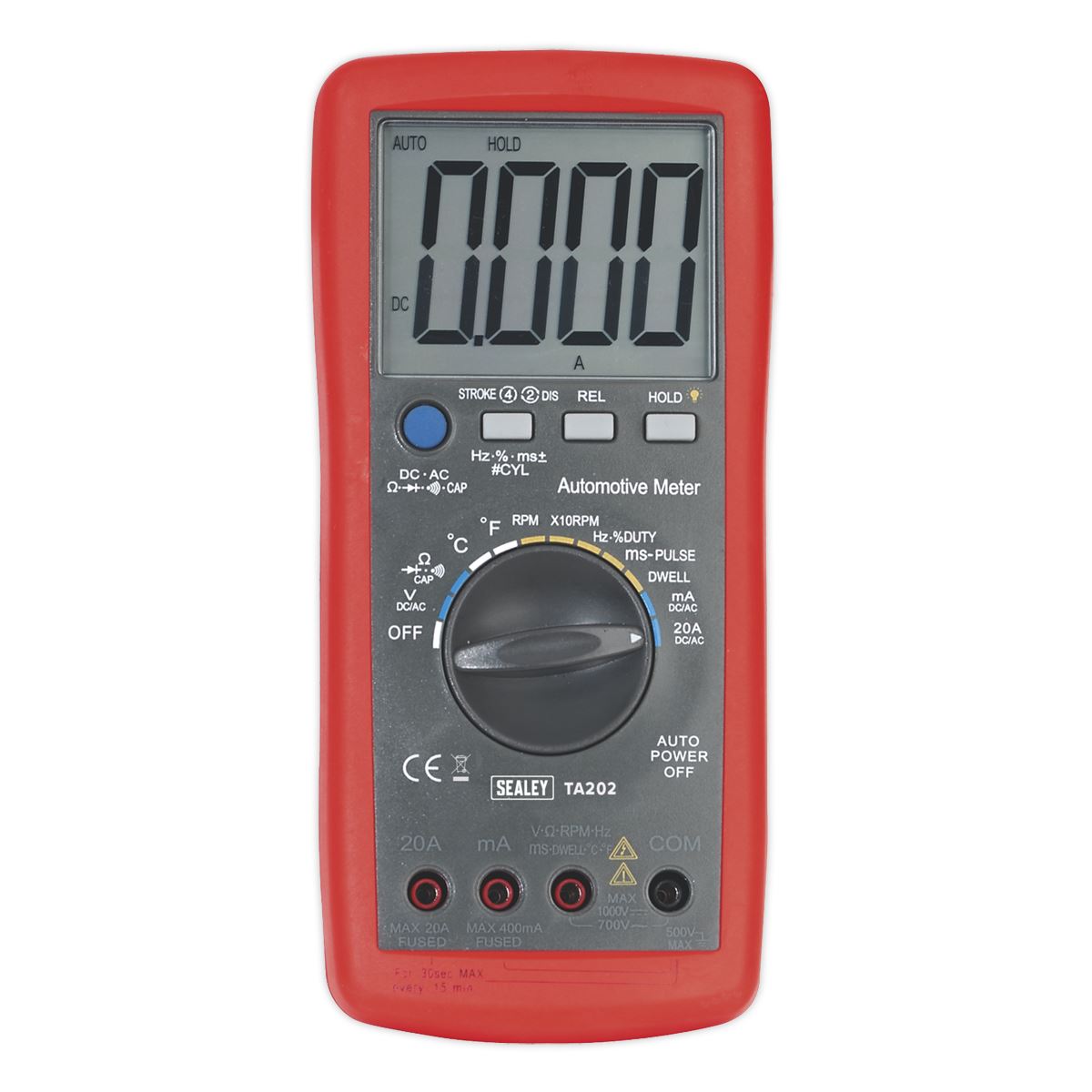

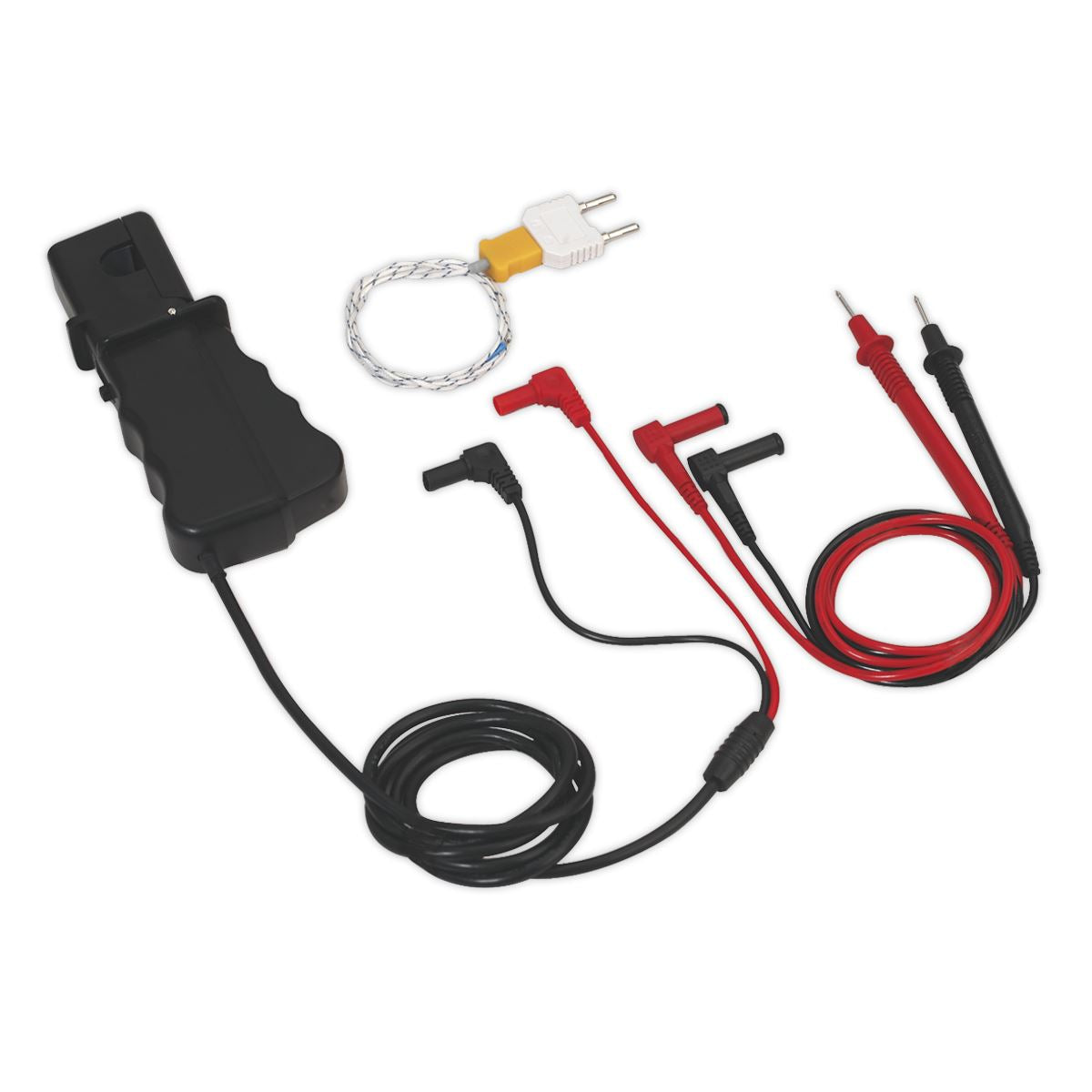

Extra-large, high-contrast LCD display with 36mm high digital read-out and back light. Durable case and integral stand suitable for the toughest workshop conditions. Features millisecond pulse-width function for accurate measurement of fuel injection systems. Includes auto-ranging, data-hold and auto-power-off. Supplied with inductive coupler (IC), test probes, thermocouple and storage case.

Product Specification

• Brand: Sealey
• Nett Weight: 394g
• Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
• Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
• AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV)

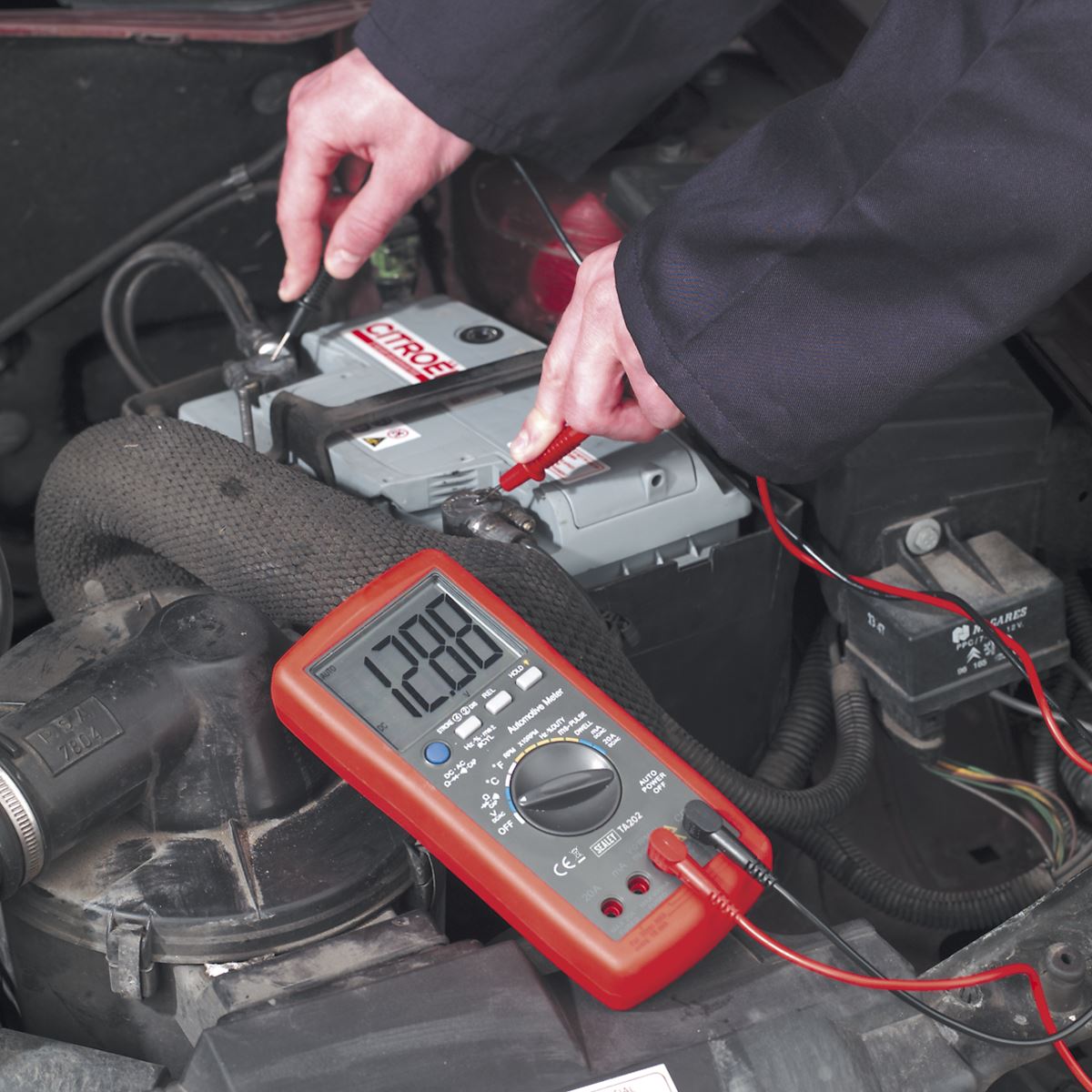

• DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
• AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
• DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
• Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
• Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging)
• Duty Cycle: 0.1-99.9%
• Pulse Width: 1-10ms
• Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
• Continuity: <150Ω

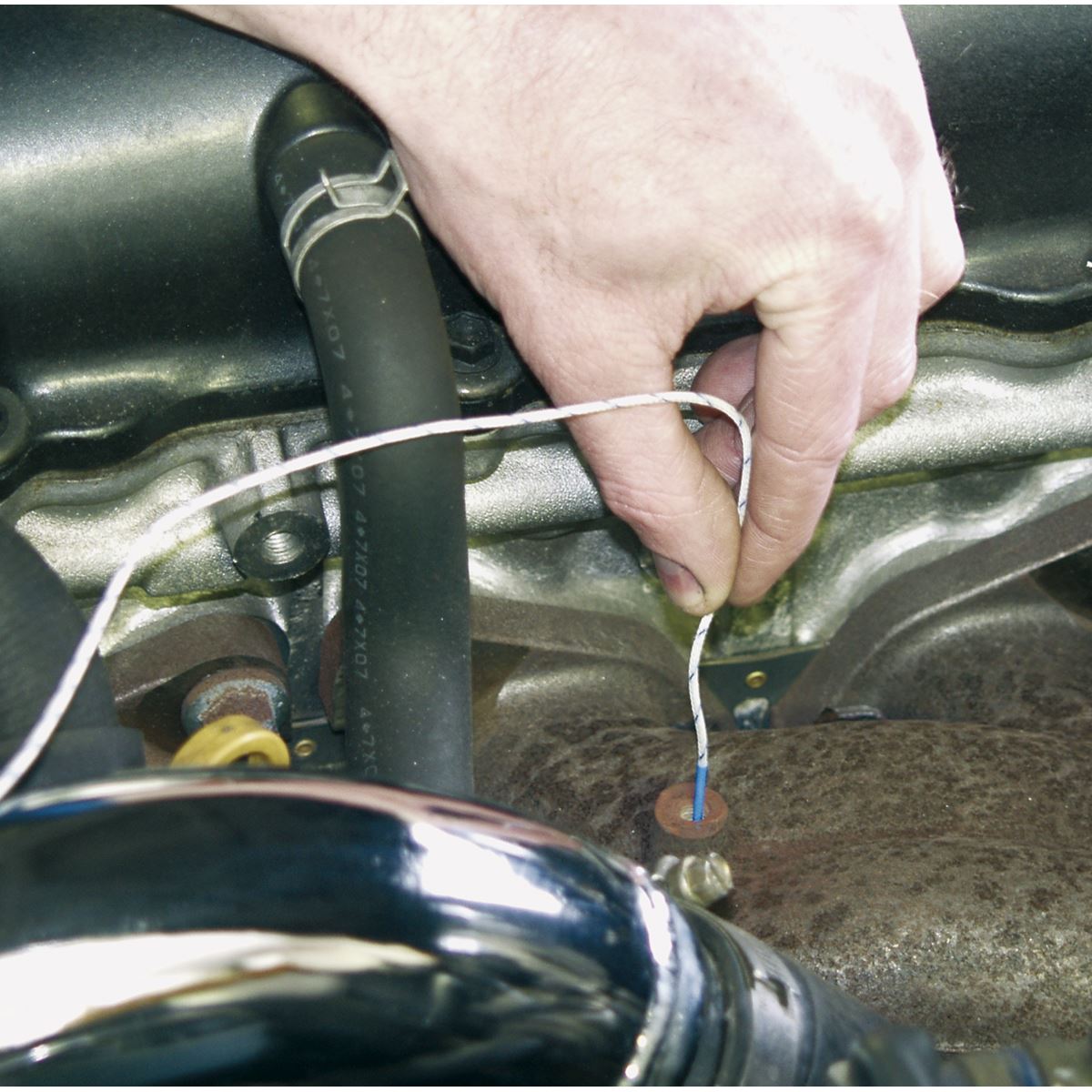

• Temperature: -20 to +760°C/-4 to +1400°F
• IR Temperature: No
• Diode Check: Yes (Typical Test Current 0.3mA)
• Transistor Test: No
• Back Light: Yes
• Bar Graph Display: No
• Display Hold: Yes
• Auto-Ranging: Yes

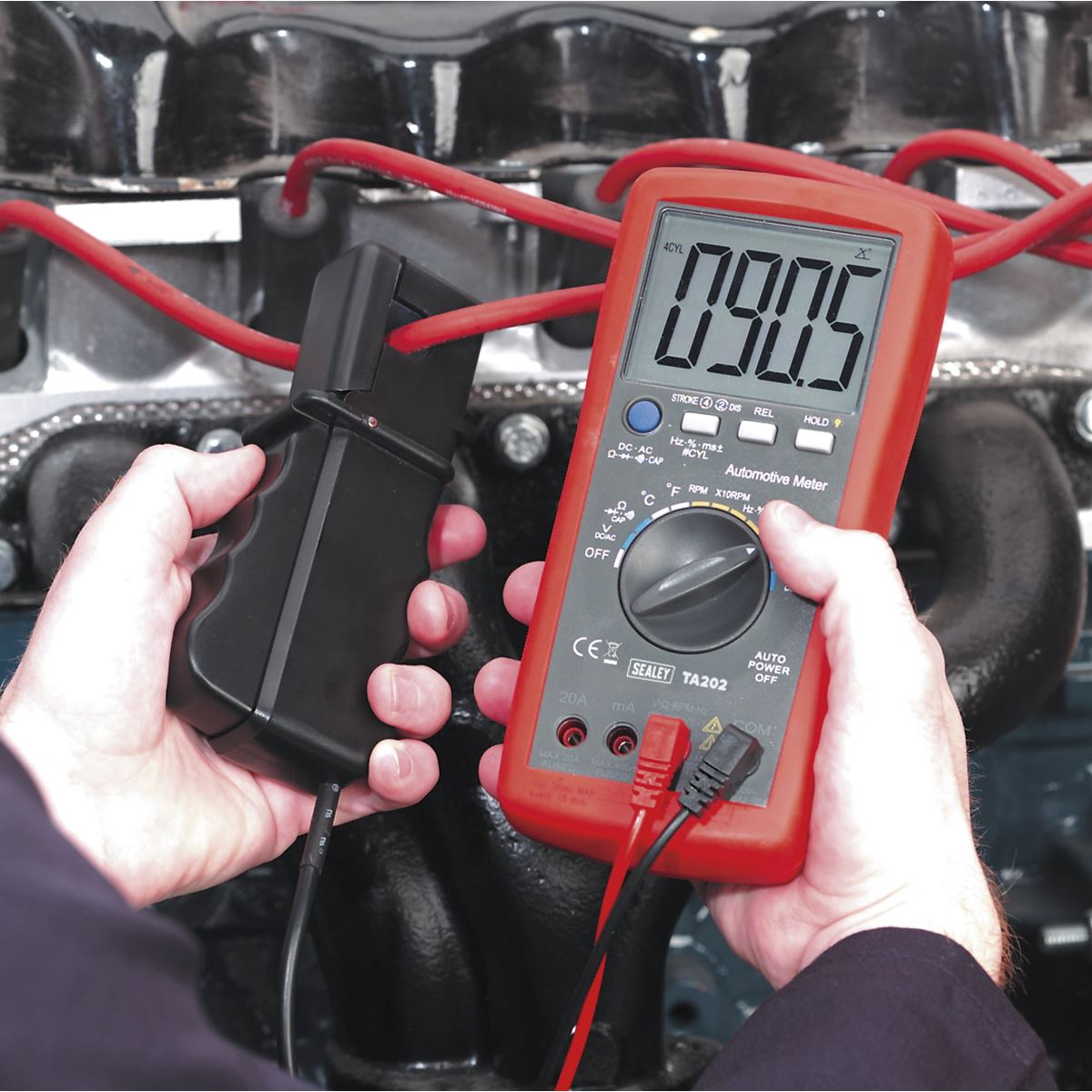

• Inductive Coupler: Yes
• PC Interface: No
• Digits Height: 36mm
• Auto Power Off: Yes
• Low Battery Indicator: Yes
• Batteries (supplied): 9V (PP3)
• Hi-Impact Case: Yes
• Size (L x W x D): 195 x 92 x 36mm
• Weight: 394g
