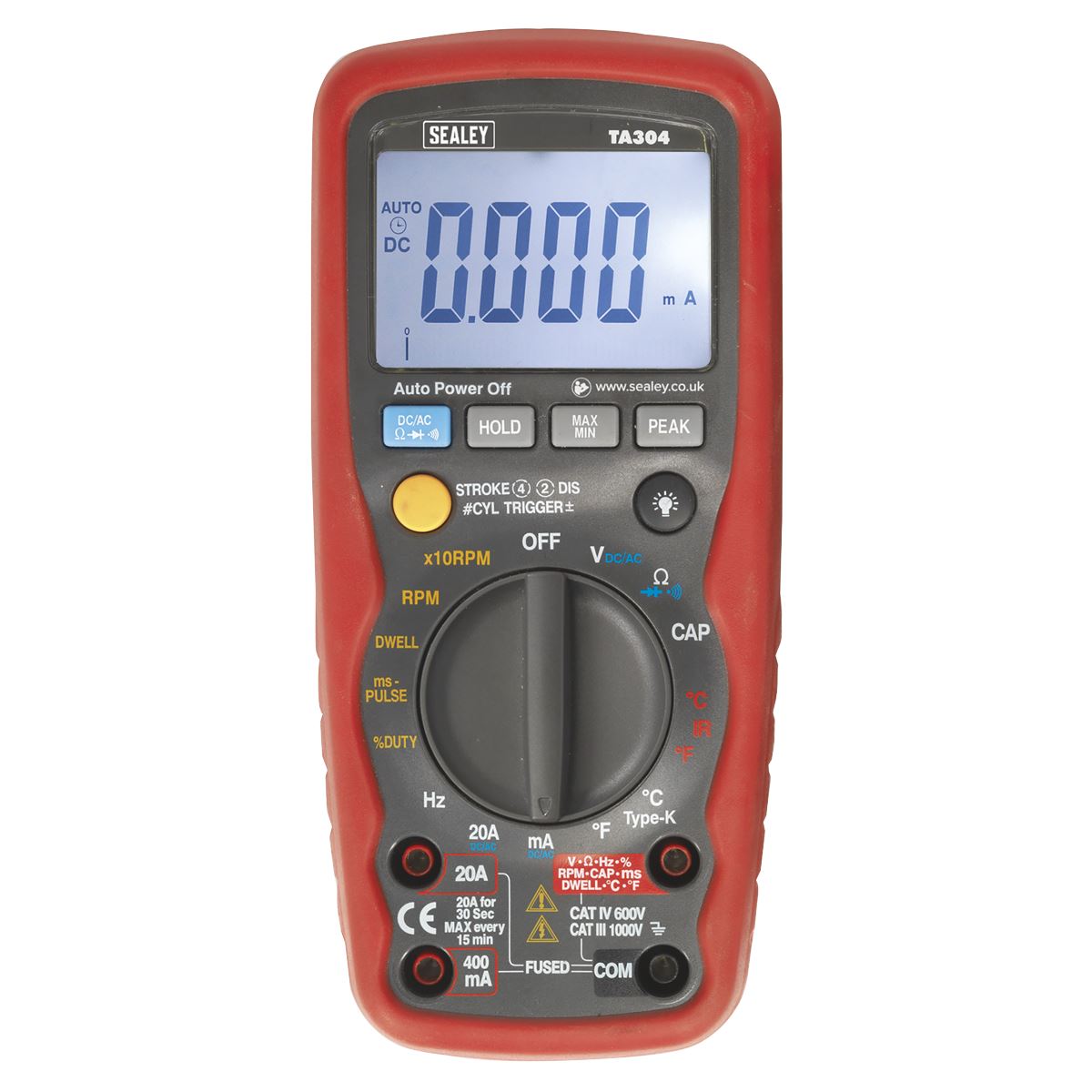

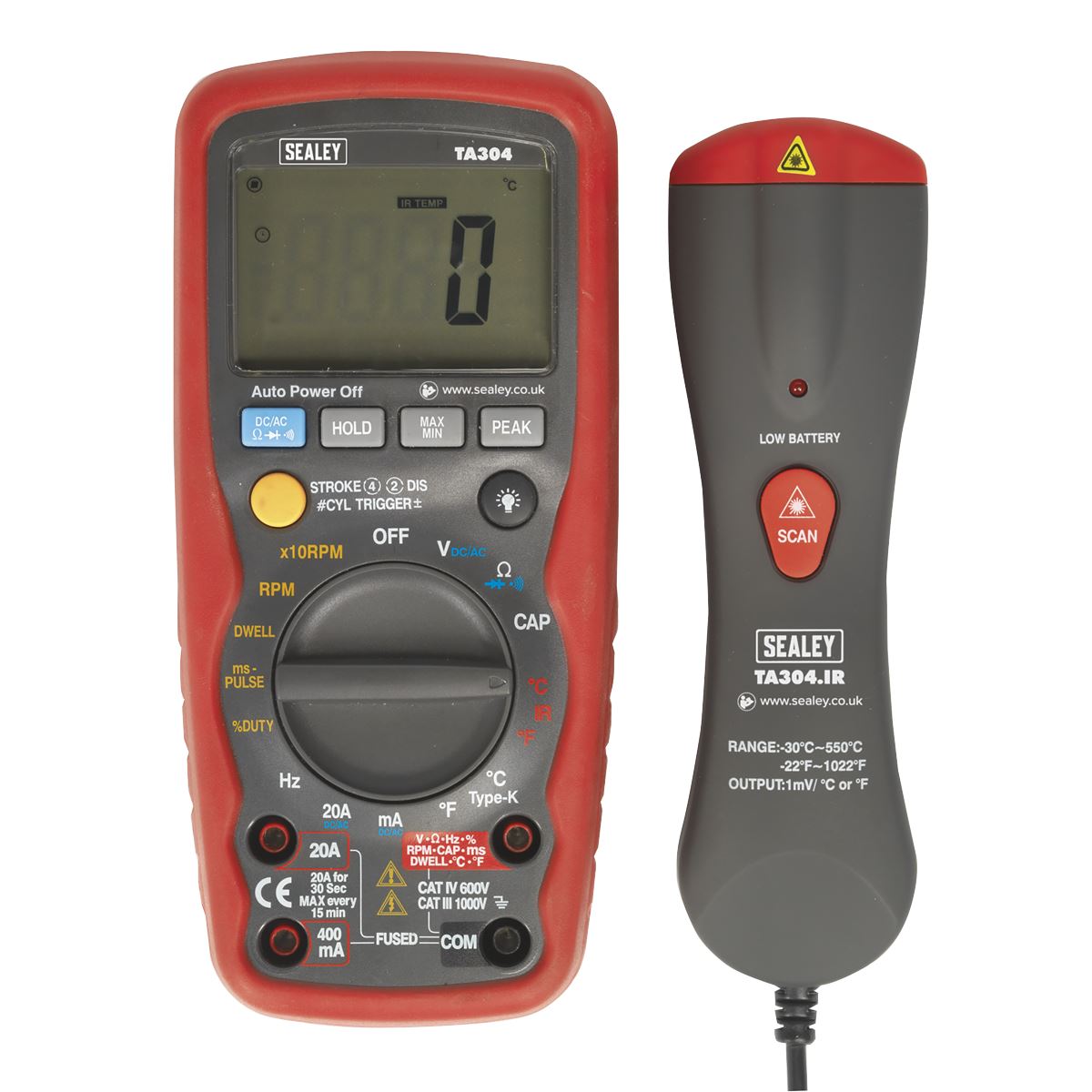

Sealey TA304 Digital Automotive Analyser 15-Function with Inductive Coupler/Infrared Temperature Probe

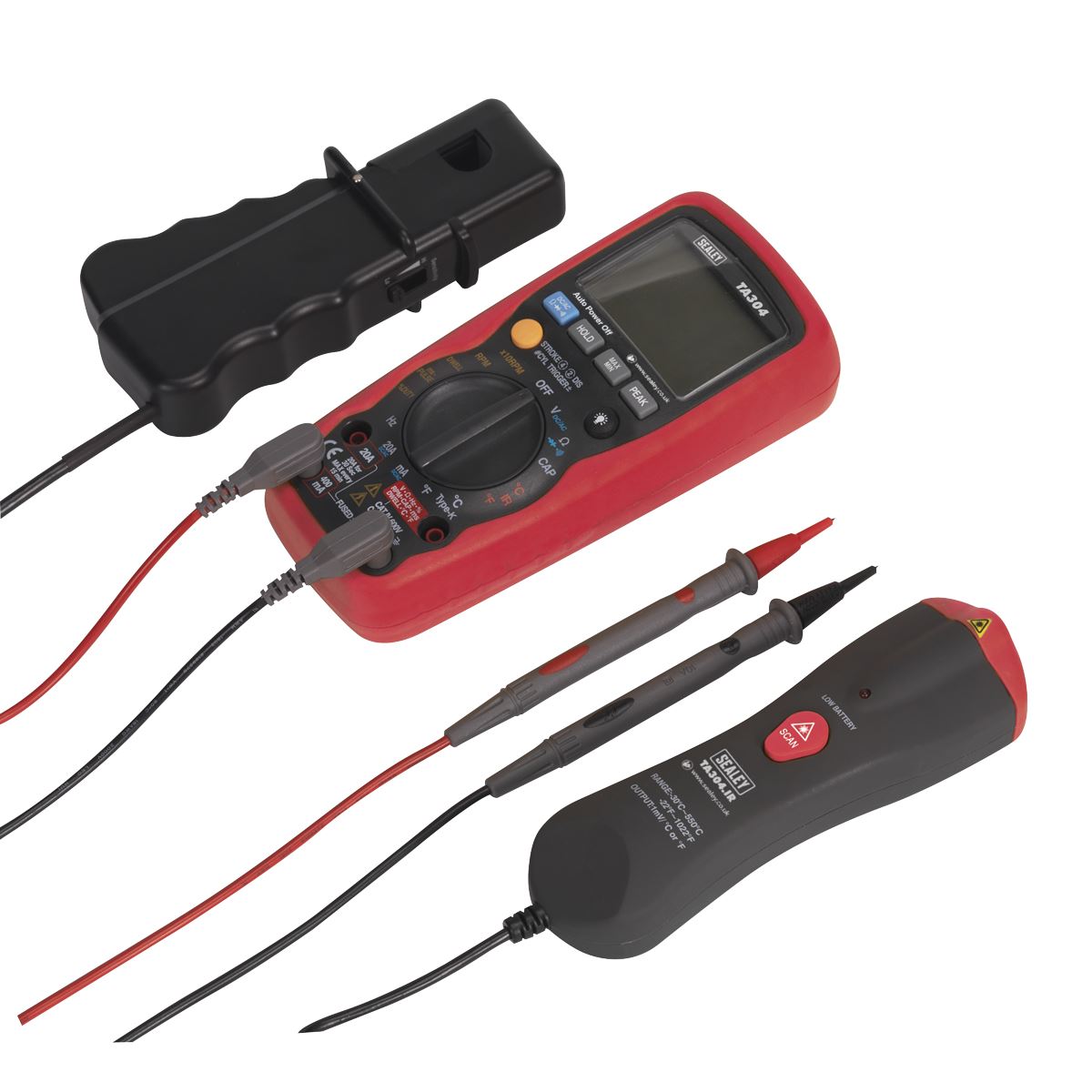

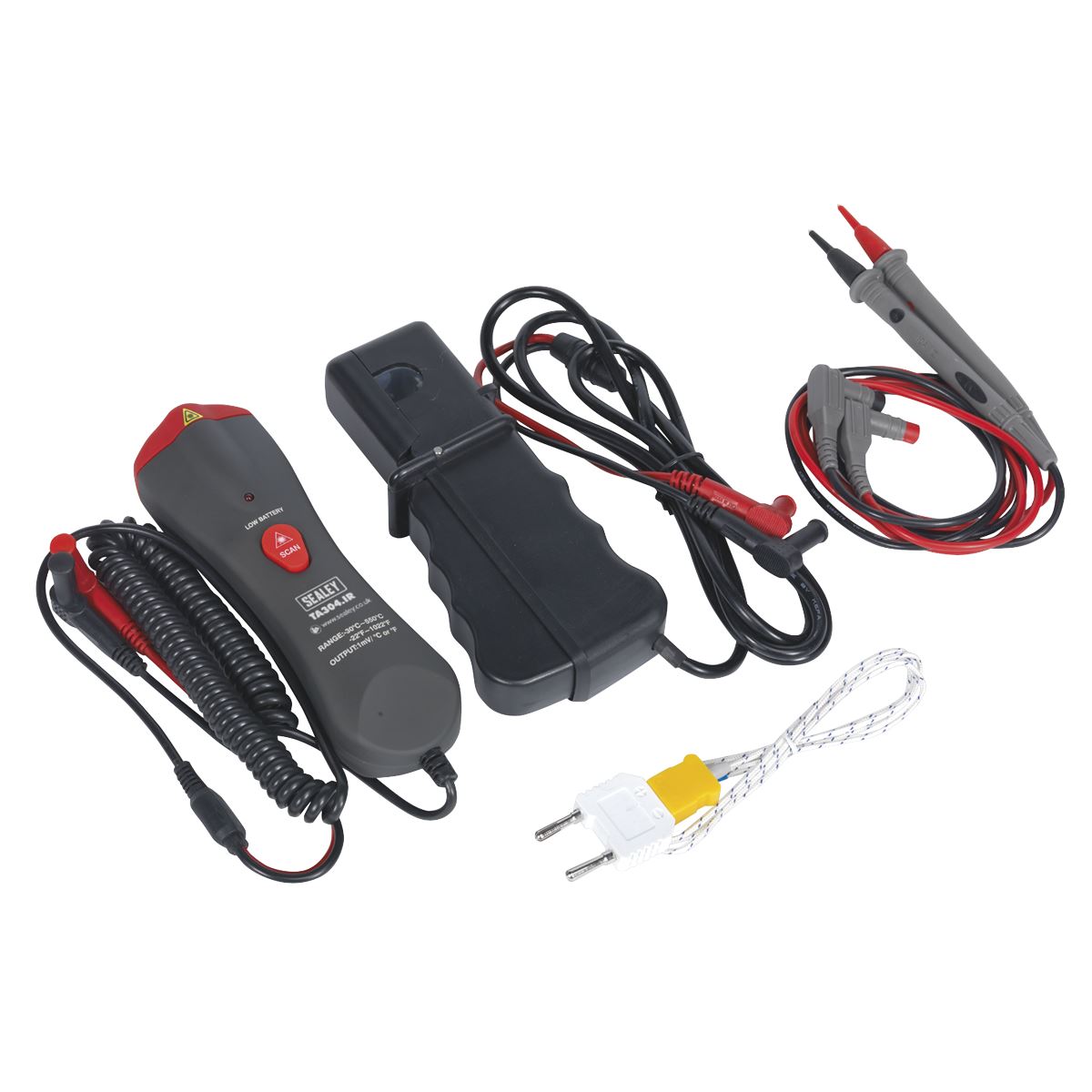

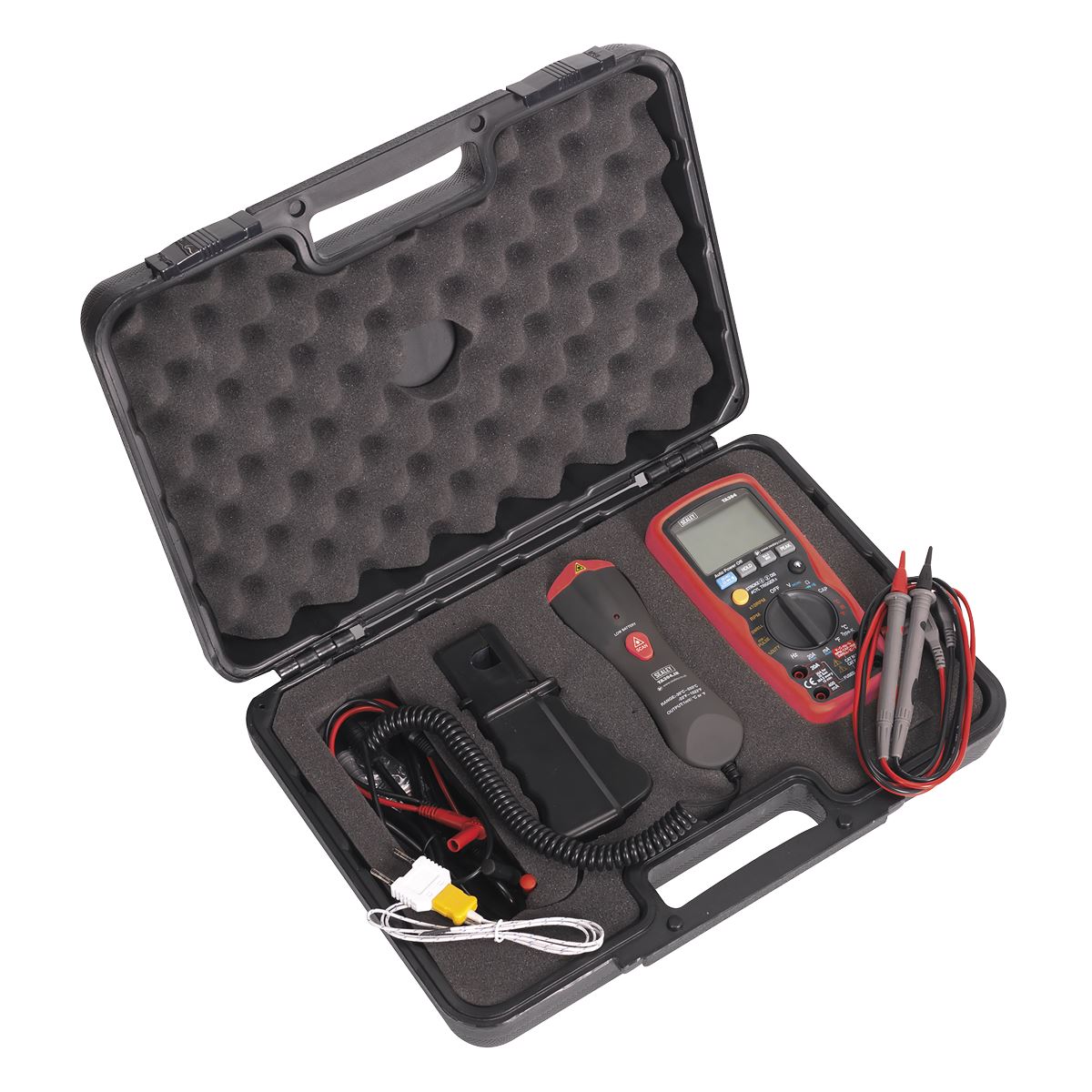

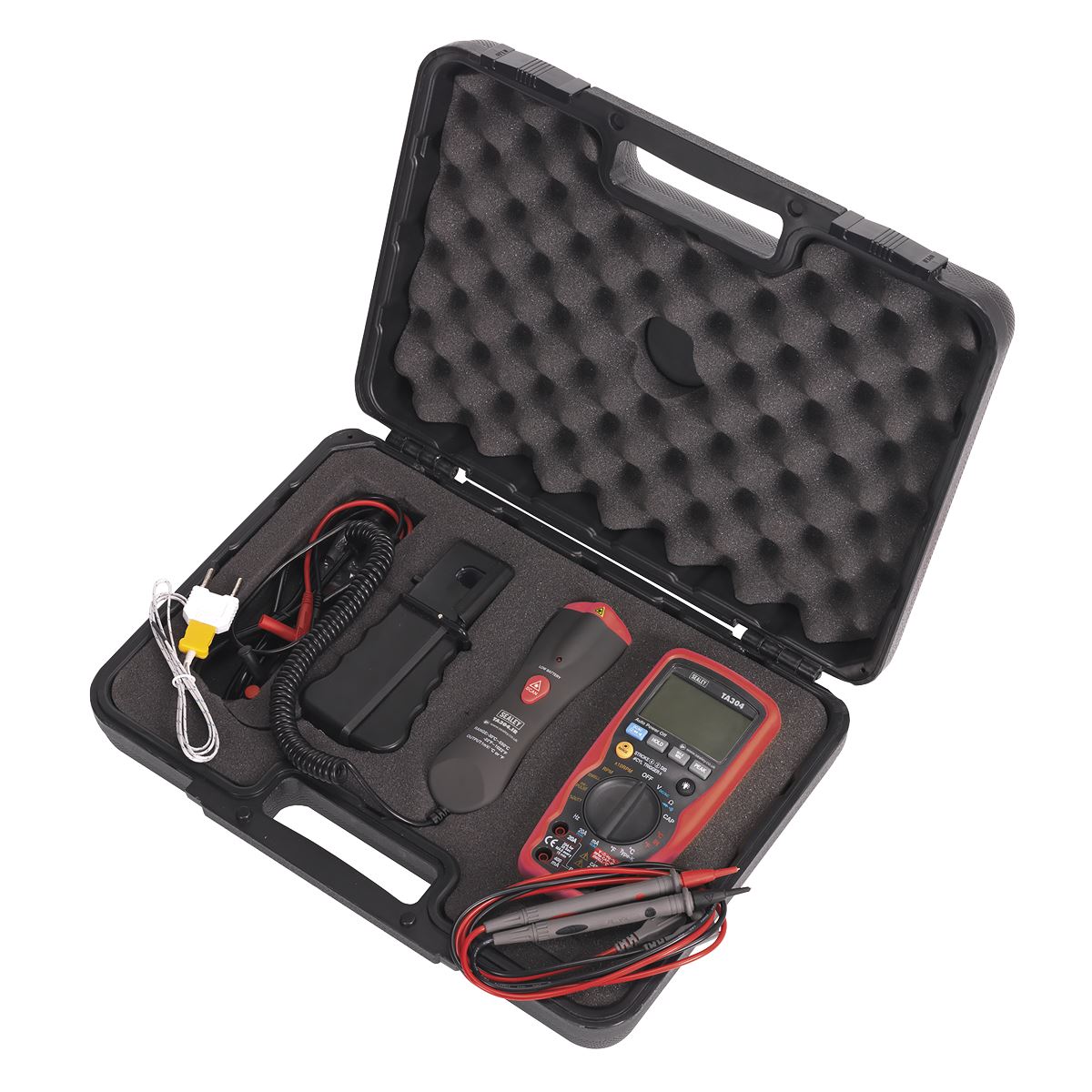

15-Function, auto-ranging automotive diagnostic multimeter with IR thermometer attachment. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand and auto-power shut-off. High-speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems. Features auto-ranging and data-hold functions with overload protection on all ranges. Includes relative functions including min./max. and peak hold. Supplied with inductive coupler, infrared temperature probe, test probes and thermocouple in storage case.

Product Specification

• Brand: Sealey
• Nett Weight: 360g
• Tach (rpm): 2-10Cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
• Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
• AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto-Ranging)
• DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
• AC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
• DC Current: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging)
• Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto-Ranging)
• Frequency: 0.001Hz-9.99MHz (Auto-Ranging)
• Duty Cycle: 0.1-99.9%
• Pulse Width: 0.1-10ms
• Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
• Continuity: <30Ω Continuity Buzzer 2kHz
• Temperature: -20 to +760°C, -4 to +1400°F
• IR Temperature: -20 to +280°C, -4 to +536°F
• Diode Check: Yes
• Transistor Test: No
• Back Light: Yes
• Bar Graph Display: Yes
• Display Hold: Yes
• Auto-Ranging: Yes
• Inductive Coupler: Yes
• PC Interface: No
• Digits Height: 20mm
• Auto Power Off: Yes
• Low Battery Indicator: Yes
• Batteries (supplied): 9V (PP3)
• Hi-Impact Case: Yes
• Size (L x W x D): 182 x 82 x 55mm
