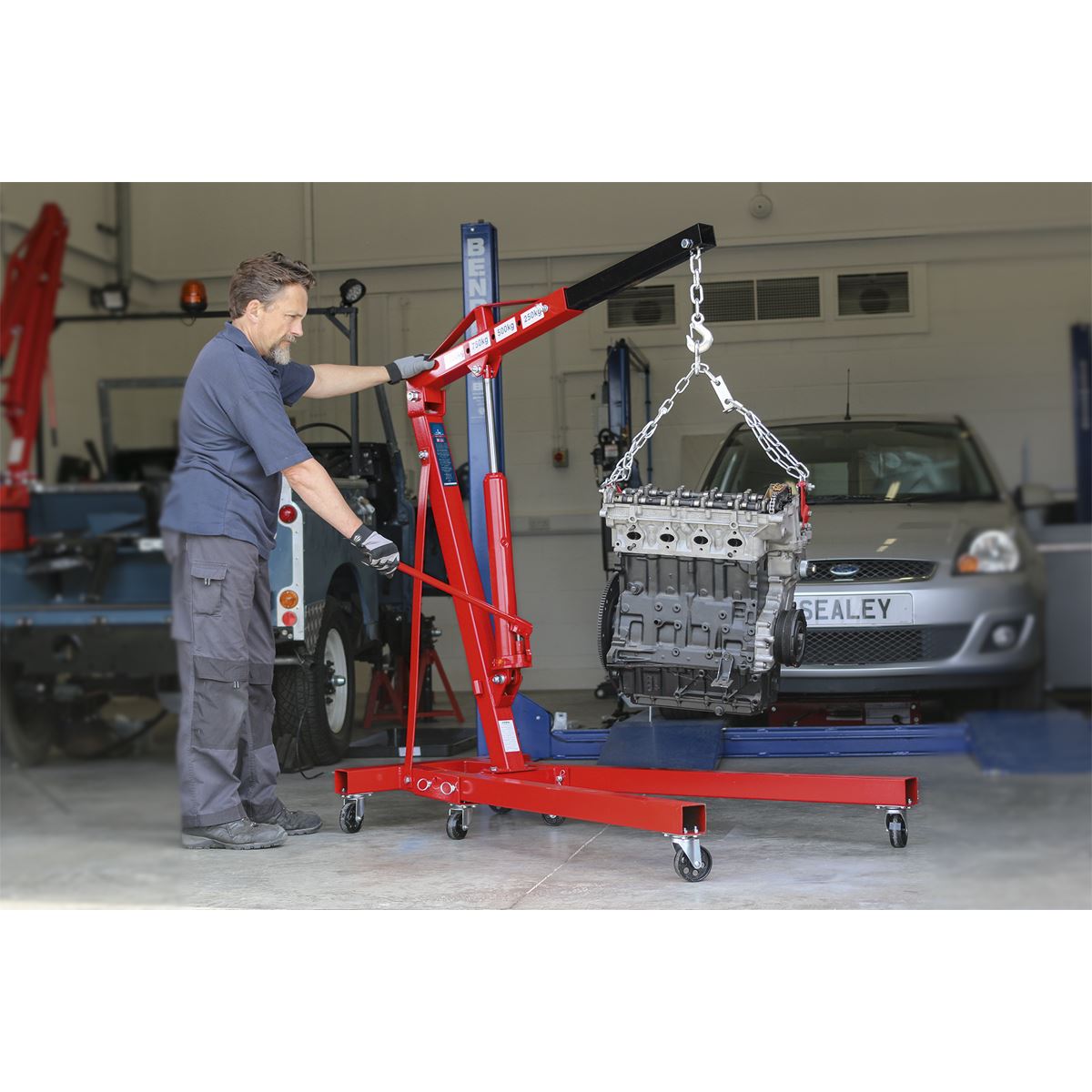

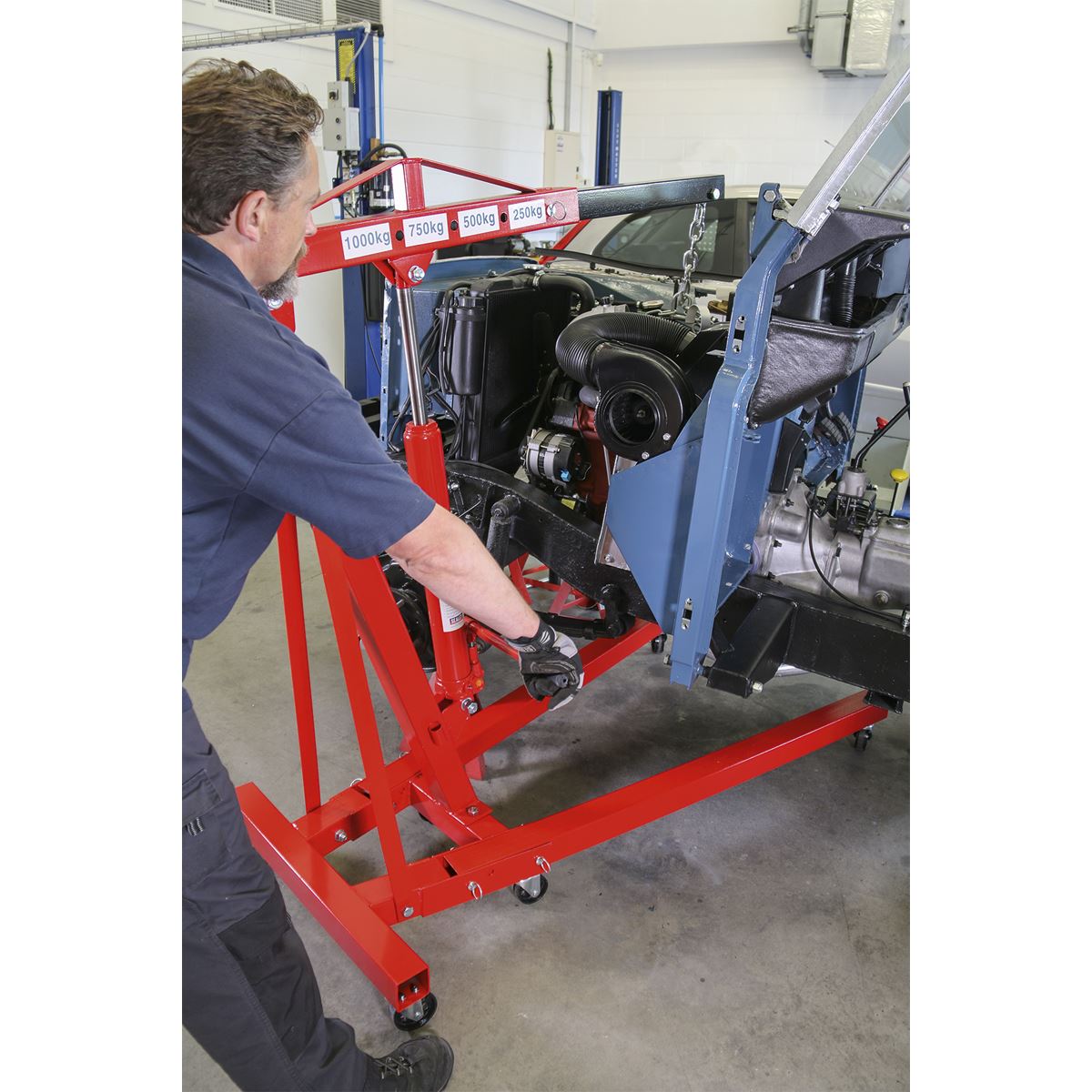

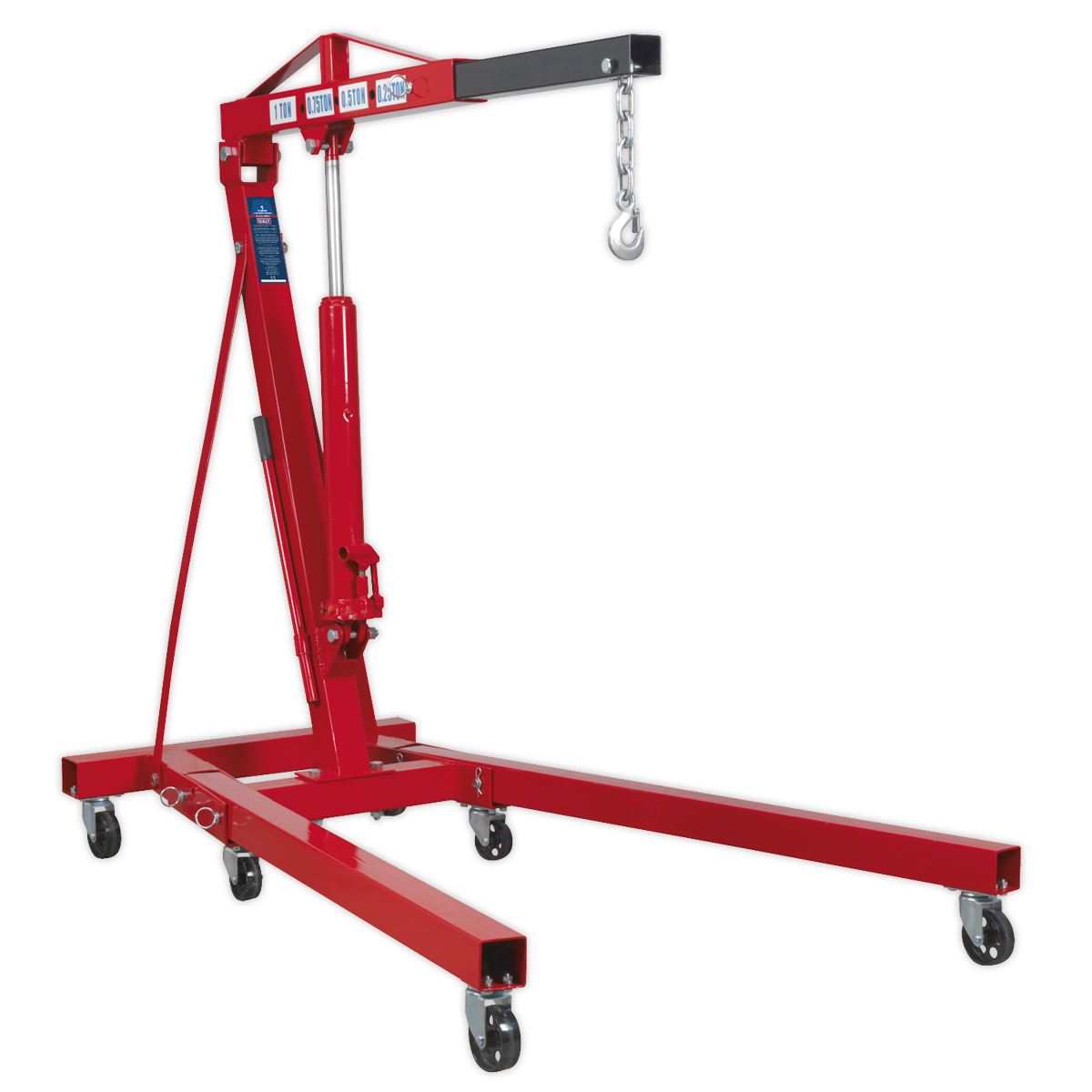

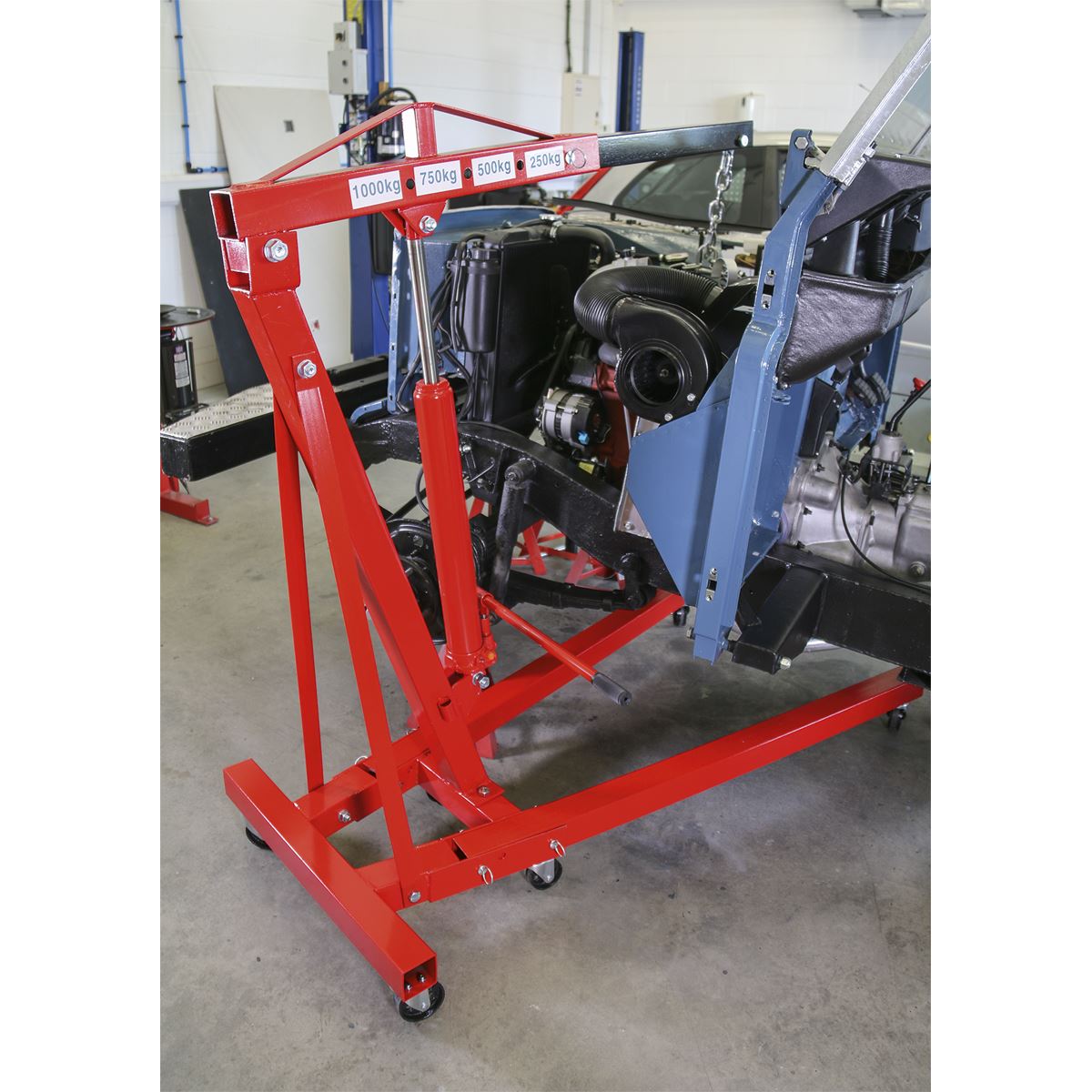

Sealey SC10 KD' Type Folding Crane 1 Tonne

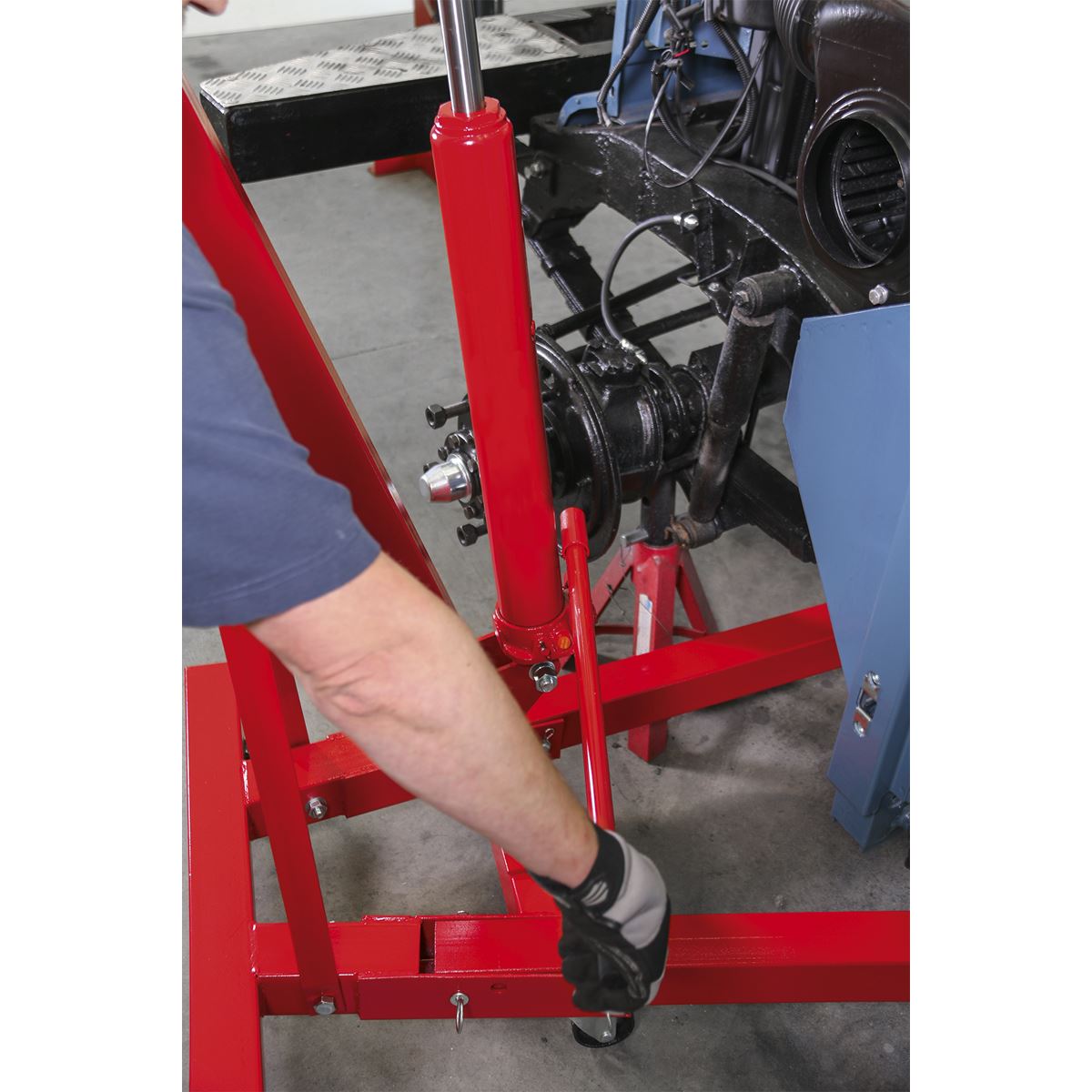

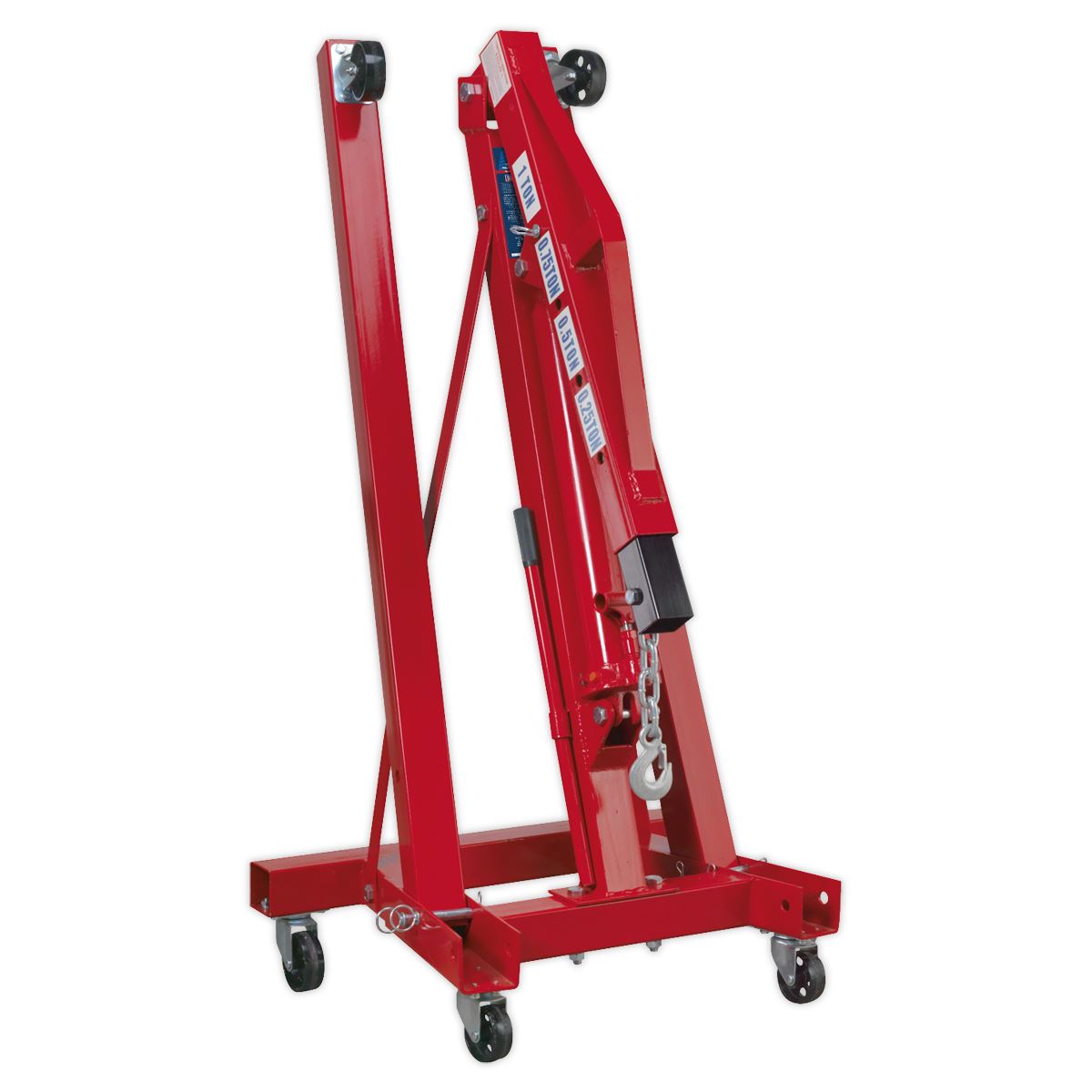

Super economy model delivered in knock-down form for reduced freight cost. Fast folding model provides easy storage and transportation with heavy-duty castors. Weighs only 67kg and is perfect for mobile or workshop use. Side pump access with removable handle.

Product Specification

• Brand: Sealey
• Height Jib Down: 1390mm
• Height Legs Folded: 1440mm
• Height of Frame: 185mm
• Length Legs Extended: 1620mm

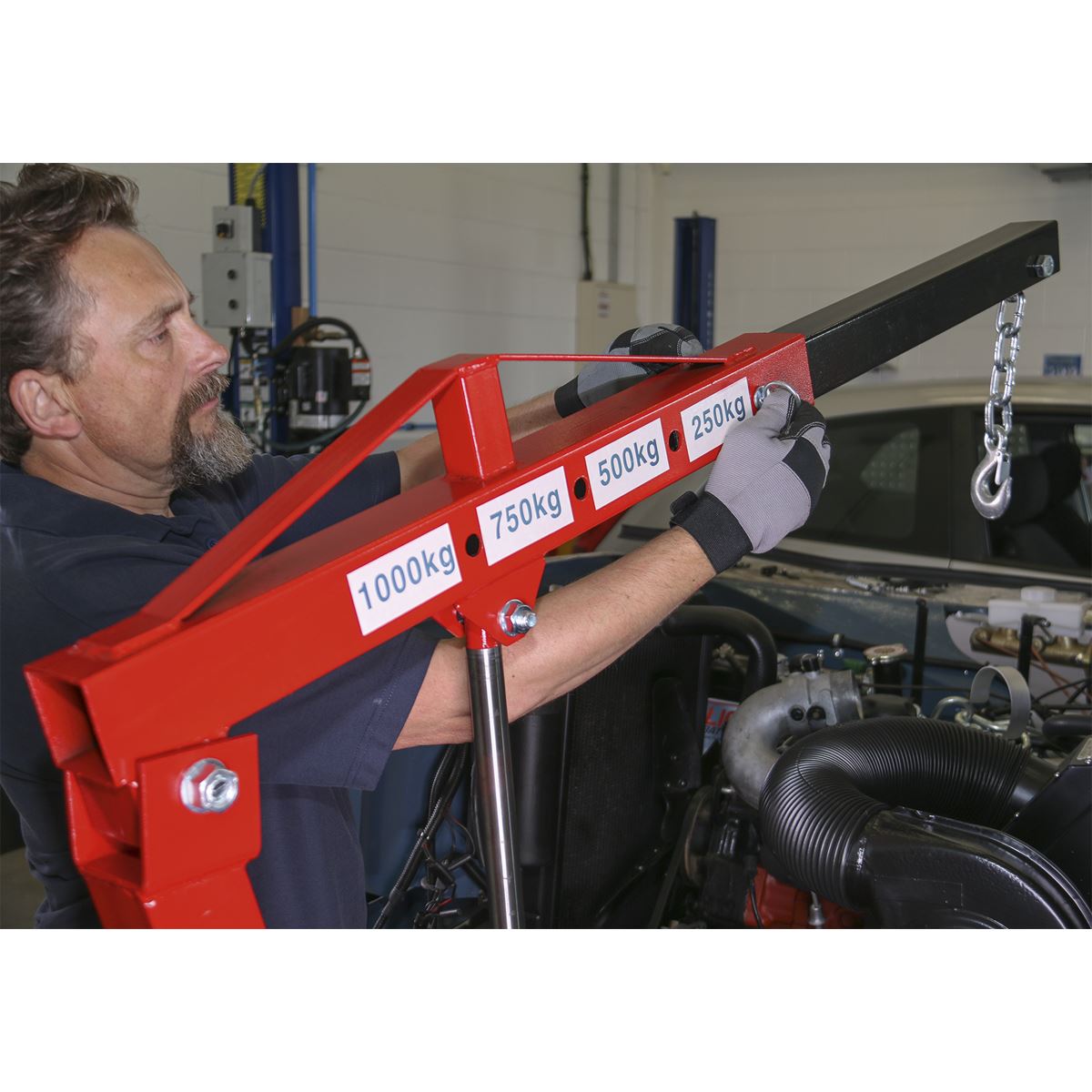

• Length of Jib Position 1: 830mm
• Length of Jib Position 2: 950mm
• Length of Jib Position 3: 1070mm
• Length of Jib Position 4: 1190mm
• Length of Jib Position 5: n/a
• Length: 1620mm
• Lifting Capacity in Position 1: 1000kg
• Lifting Capacity in Position 2: 750kg
• Lifting Capacity in Position 3: 500kg
• Lifting Capacity in Position 4: 250kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 1820mm
• Max. Lift Ht at Jib Position 2: 1935mm
• Max. Lift Ht at Jib Position 3: 2030mm
• Max. Lift Ht at Jib Position 4: 2150mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 67kg
• Rear Width: 700mm
• Width Front Frame: 920mm
• Width Inside Front Frame: 780mm
