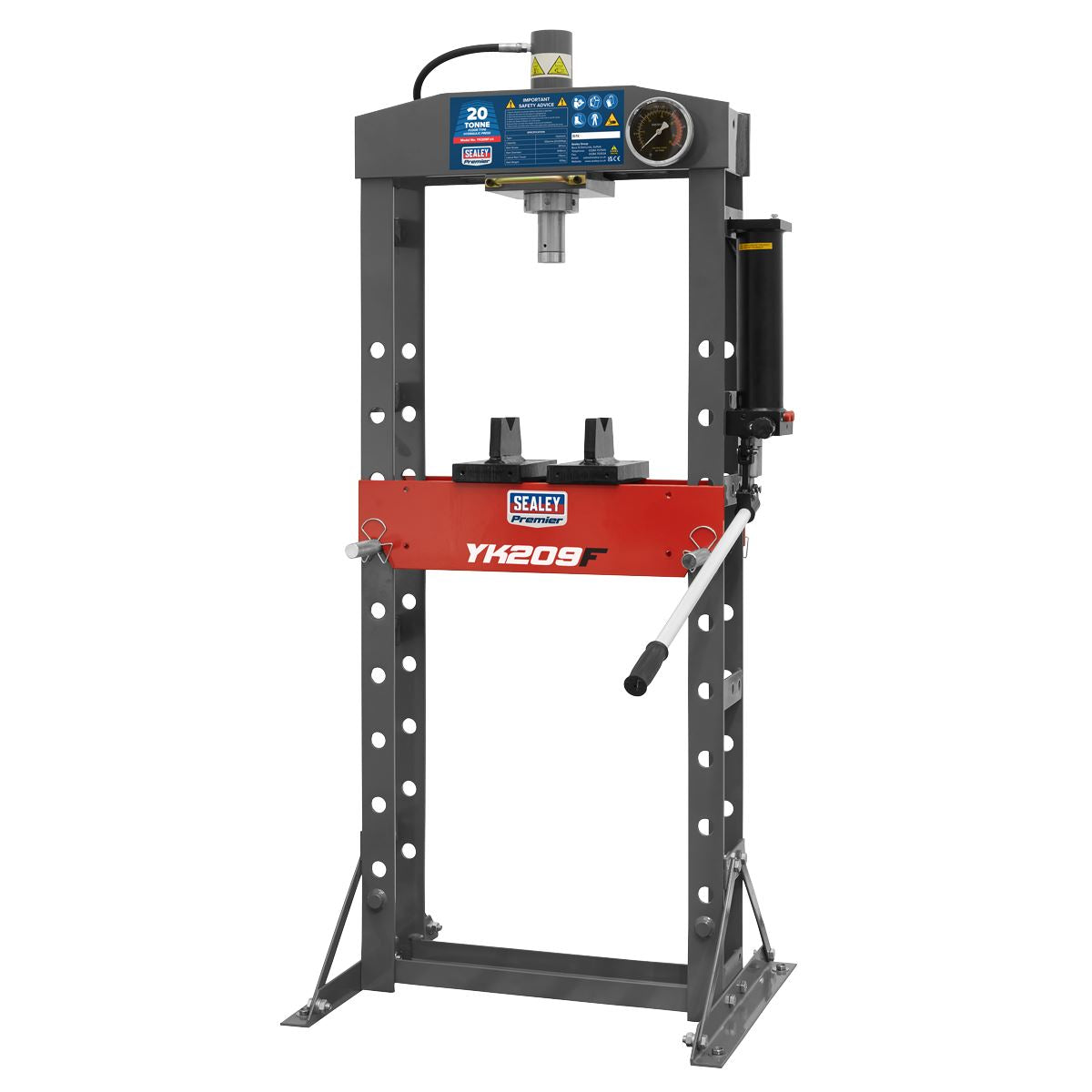

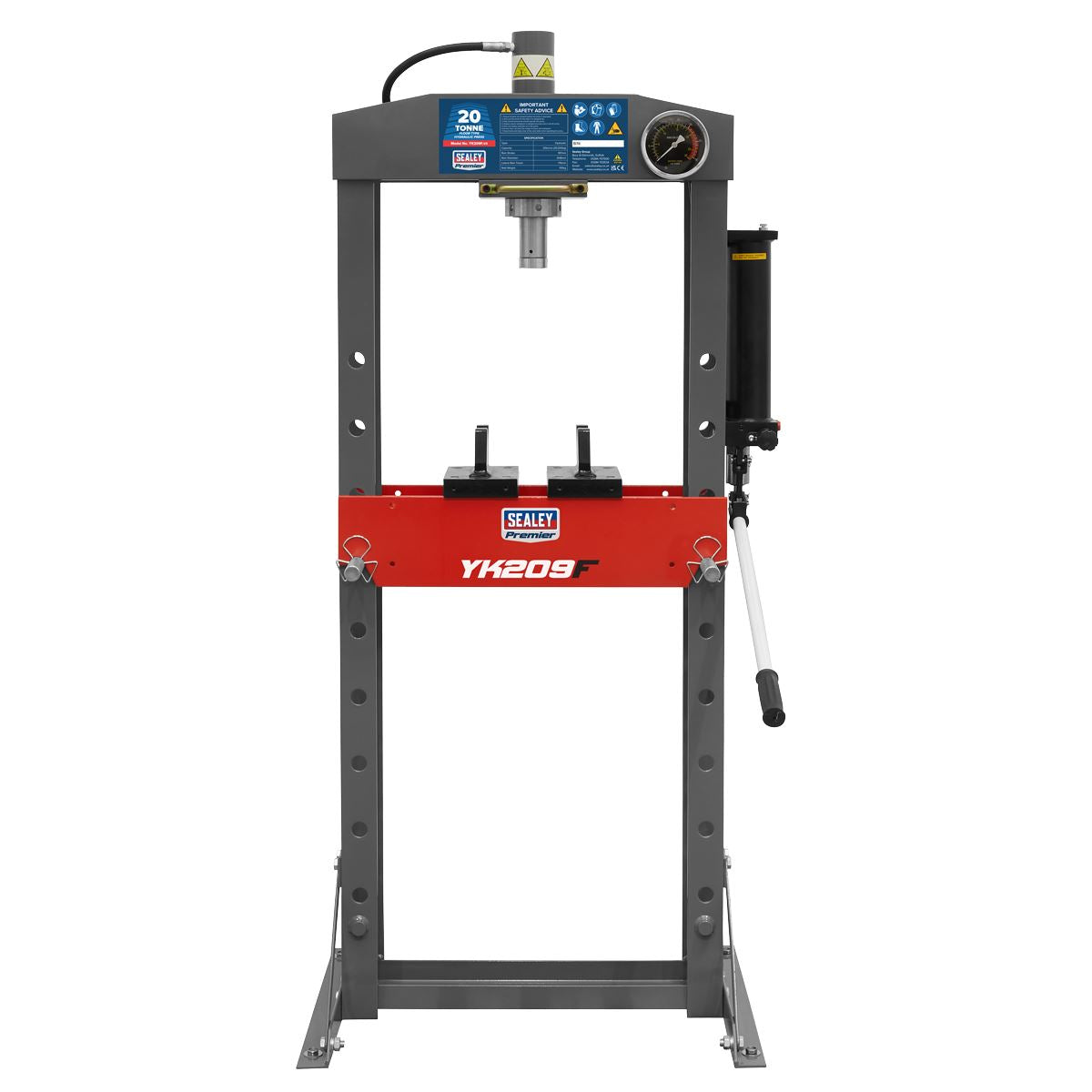

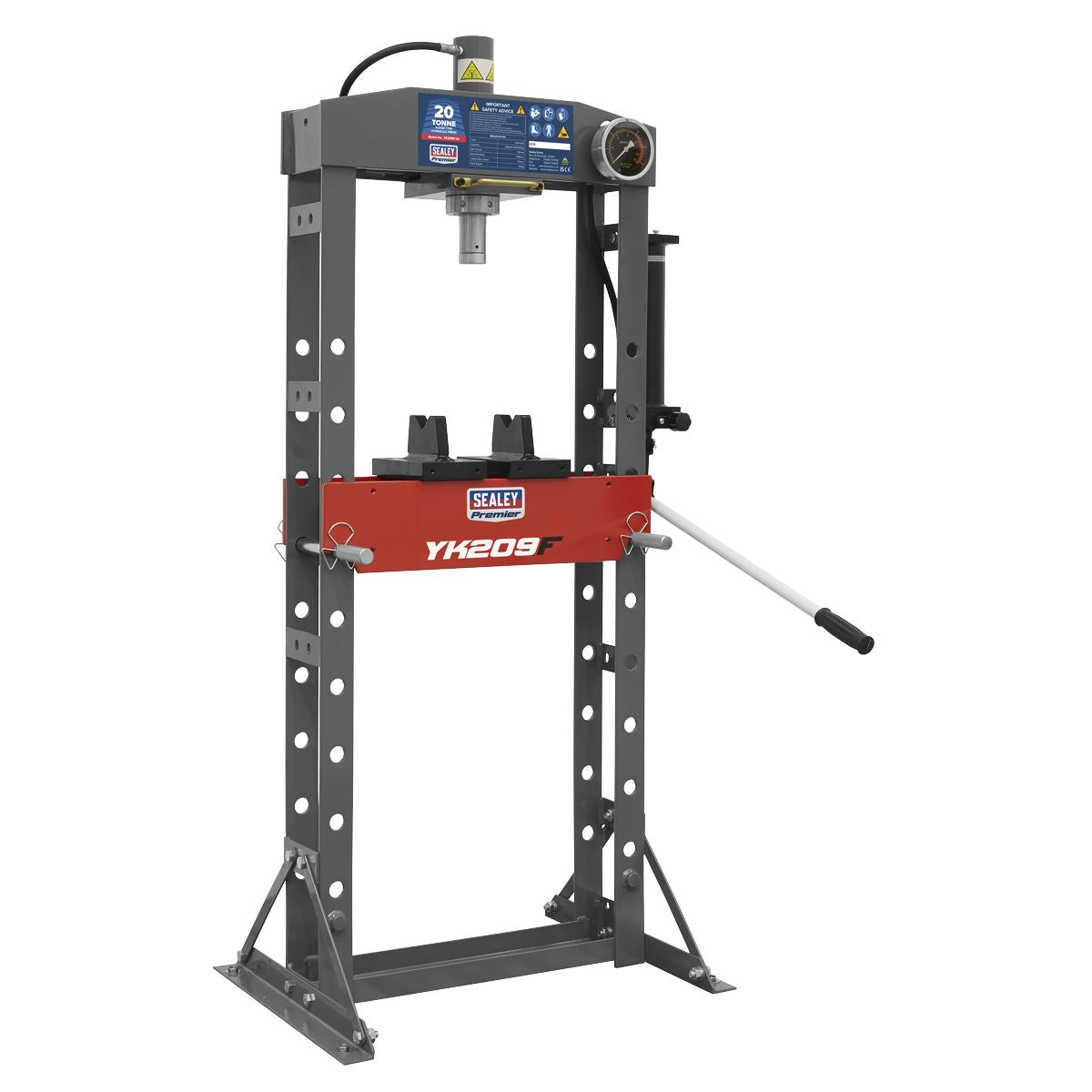

Sealey YK209F Premier Hydraulic Floor Type Press 20 Tonne

Made from a high quality steel with a powder coated paint finish to help corrosion resistance. Fully Welded frame. Sliding hydraulic ram assembly giving 176mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.

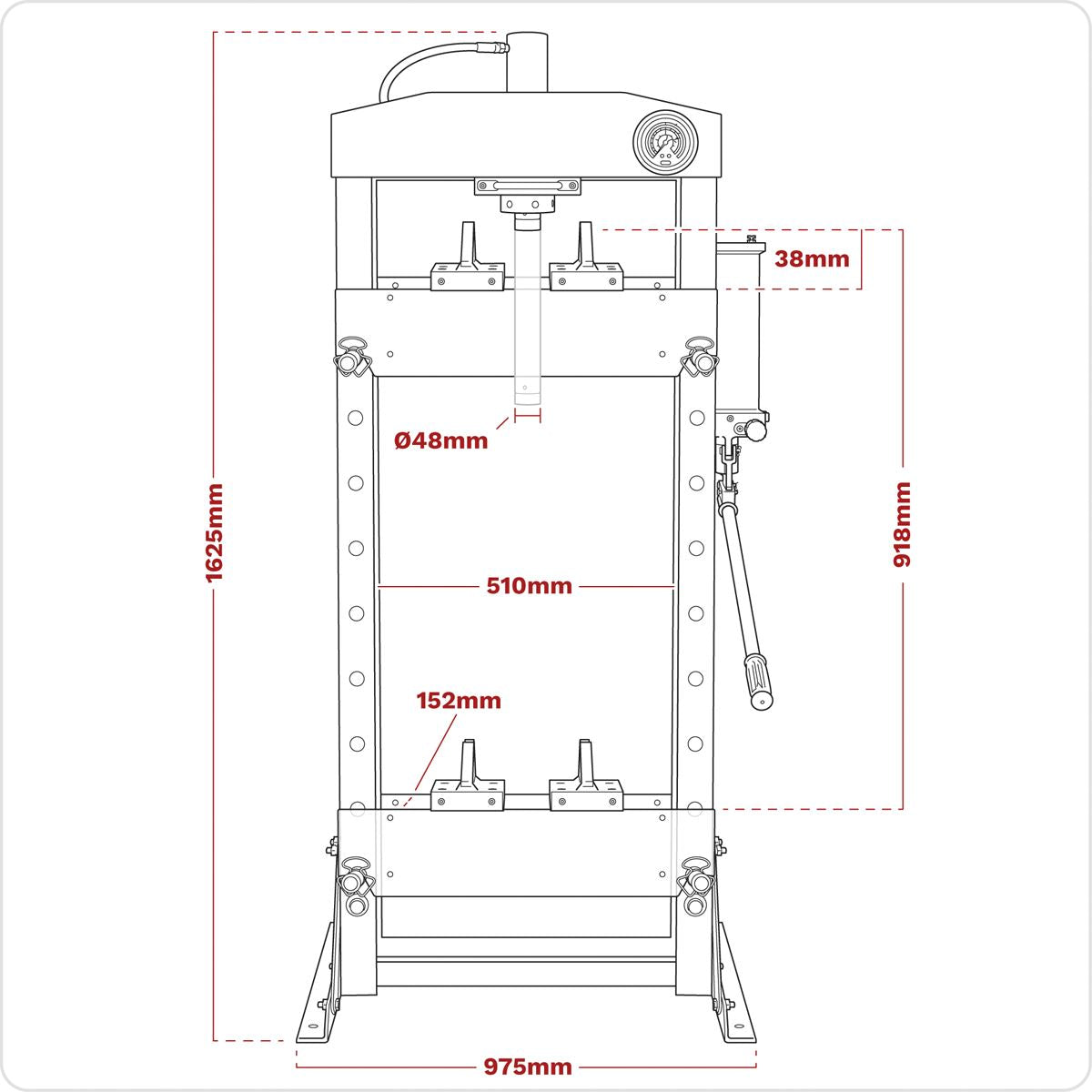

Product Specification

• Bench or Floor Mounting: Floor
• Brand: Premier
• Capacity: 20 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 176mm
• Maximum Height - Ram to Table: 918mm
• Minimum Height - Ram to Table: 38mm
• Nett Weight: 105kg
• Operating Table Width: 510mm
• Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1625mm
• Overall Width: 975mm
• Ram Diameter: Ø48mm
• Ram Stroke: 187mm
• Table Aperture: 152mm
• Type: Hydraulic
• Working Table Depth: 172mm
• Working Table Width: 510mm
