Sealey PPF30S Viking Floor Type Hydraulic Press 30 Tonne

Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.

Product Specification

• Bench or Floor Mounting: Floor
• Brand: Viking
• Capacity: 30 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: n/a

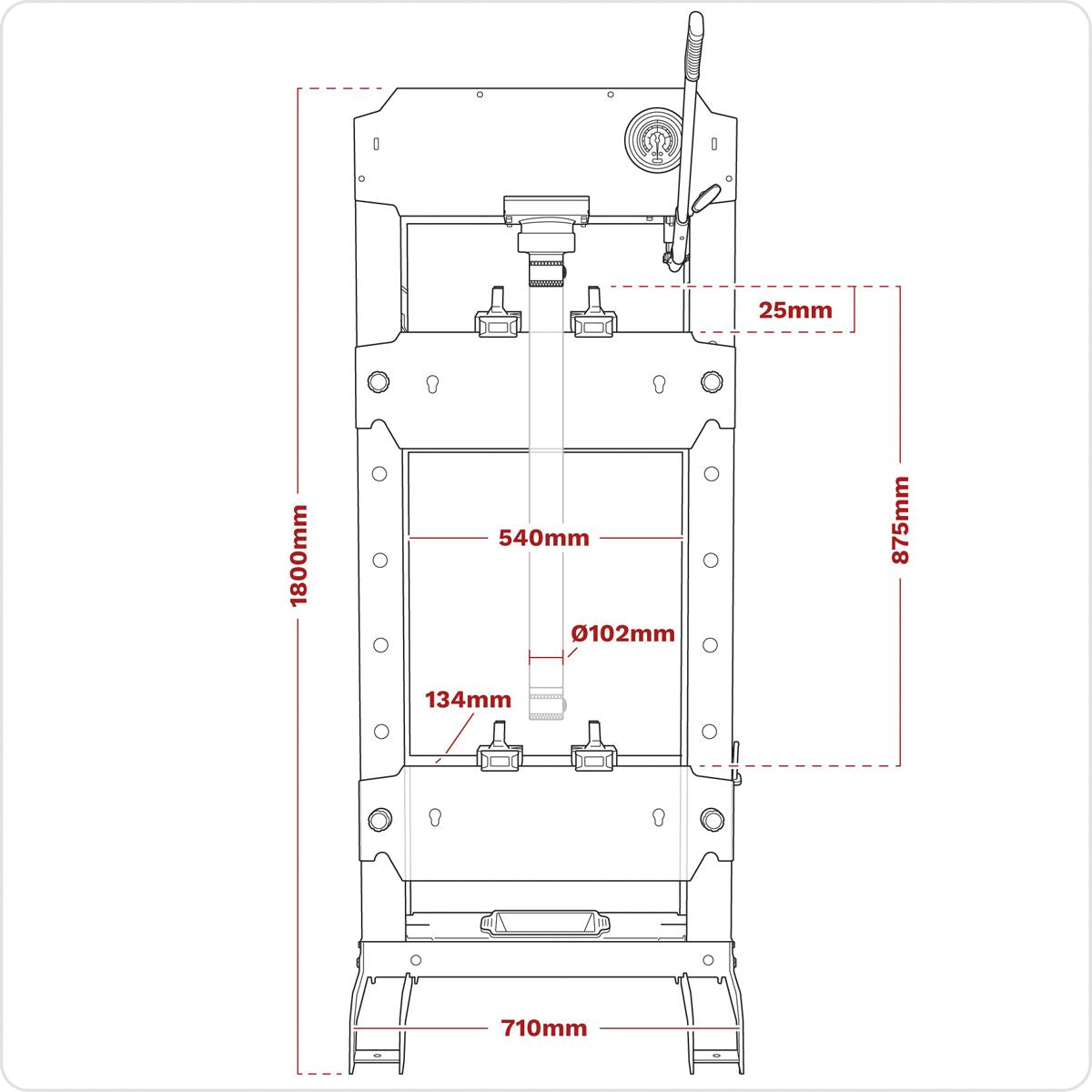

• Maximum Height - Ram to Table: 875mm
• Minimum Height - Ram to Table: 25mm
• Nett Weight: 125.9kg
• Overall Height: 1800mm
• Overall Width: 710mm
• Ram Diameter: Ø102mm
• Ram Stroke: 145mm
• Screw Extension: 75mm
• Table Aperture: 150mm
• Type: Floor
• Working Table Depth: 166mm
• Working Table Width: 710mm
