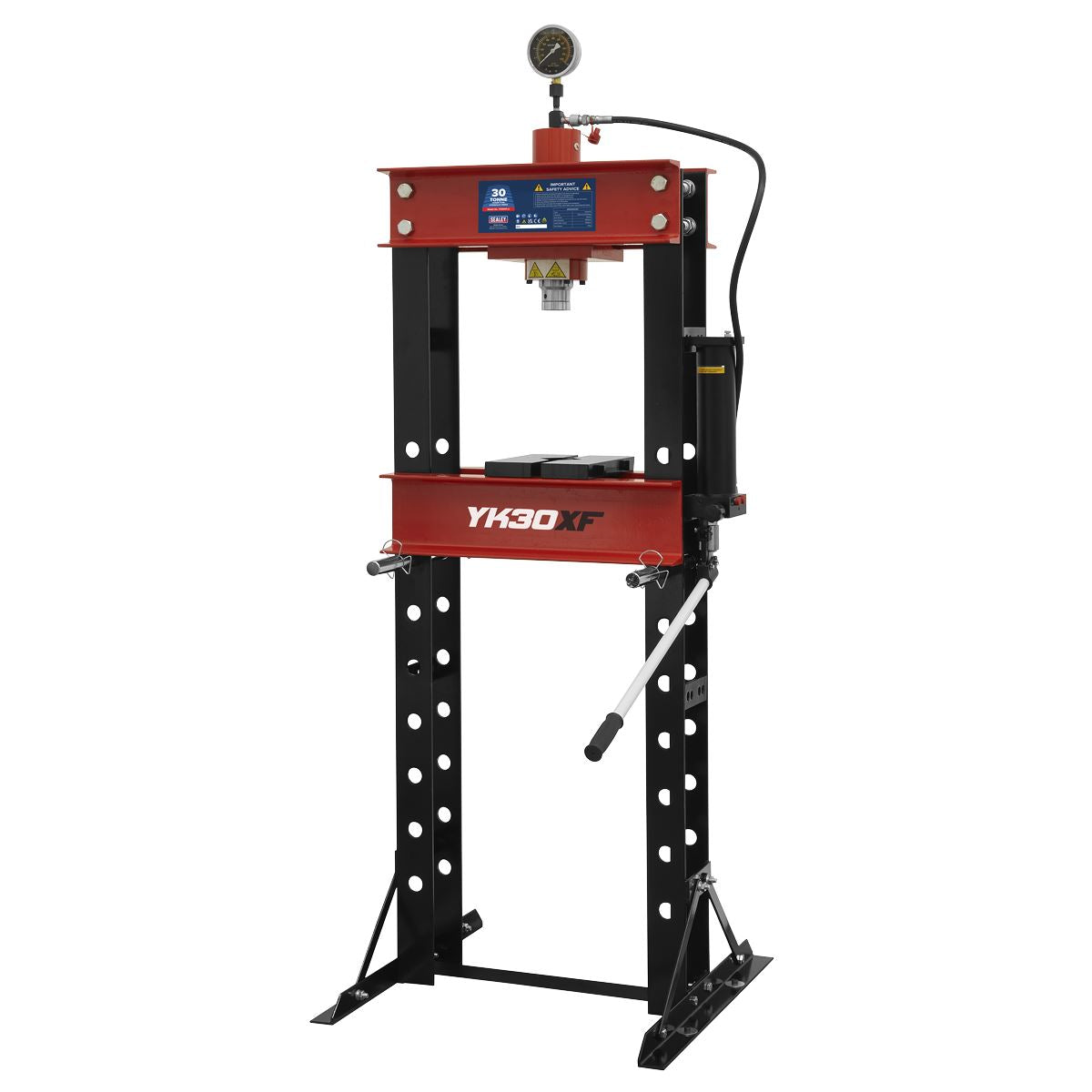

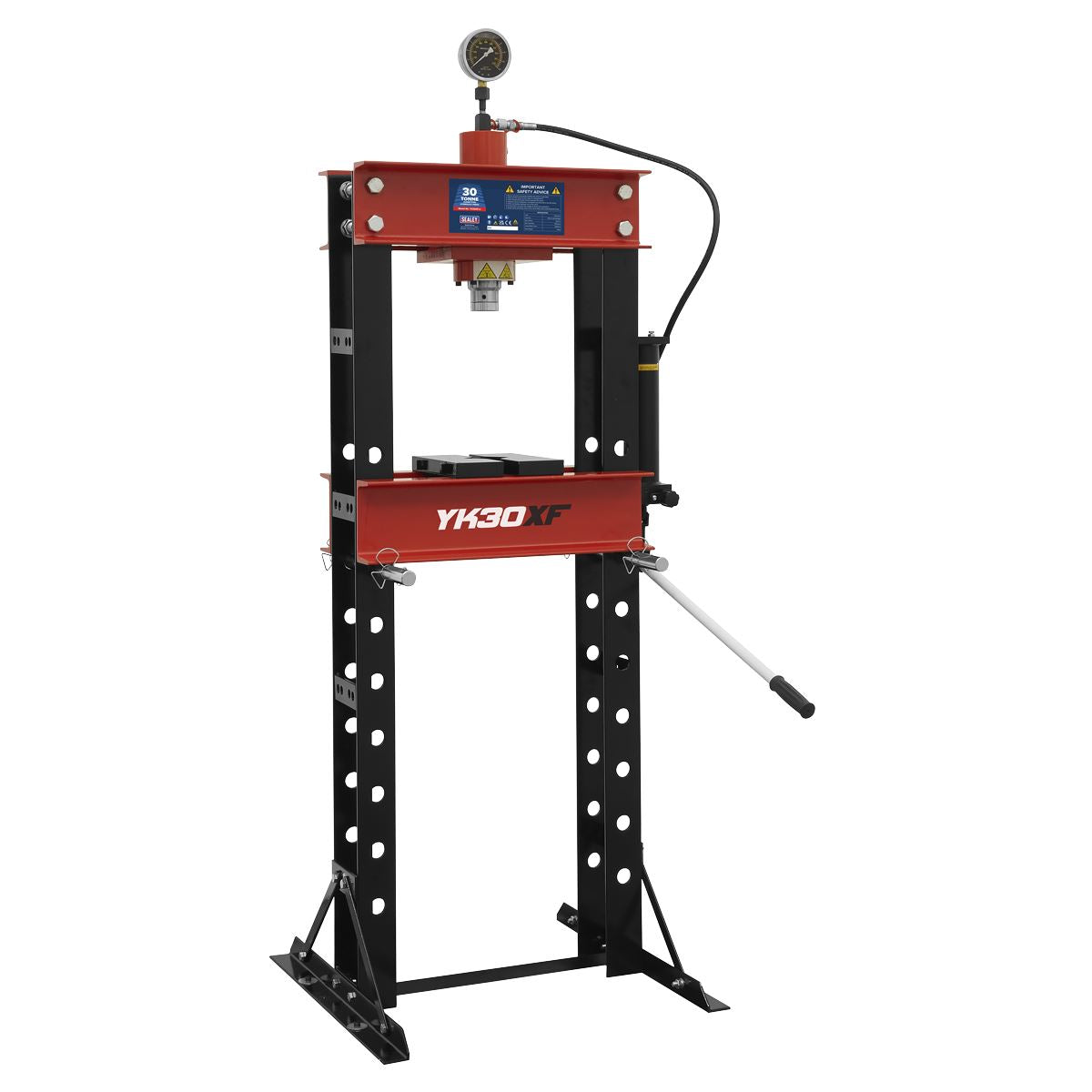

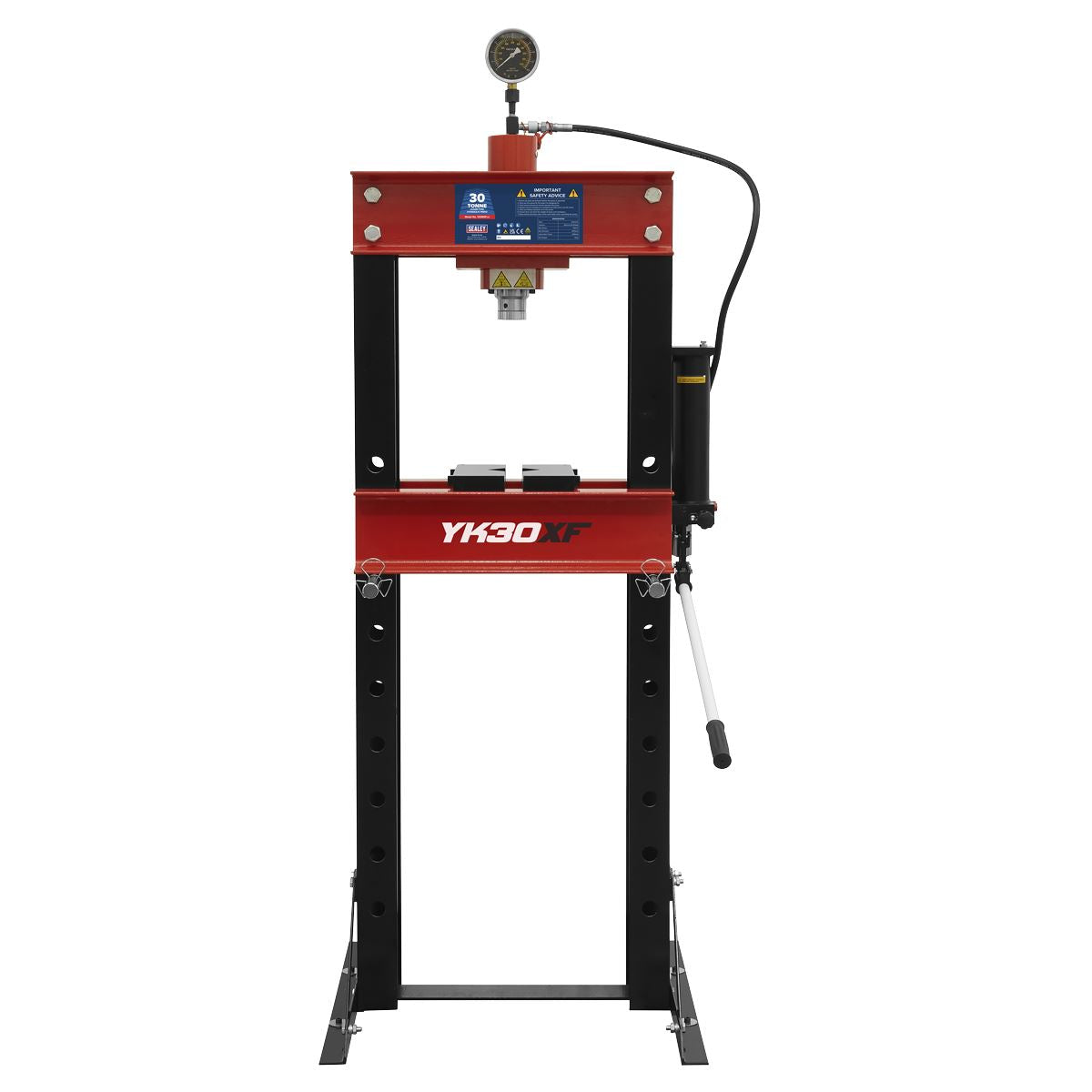

Sealey YK30XF Hydraulic Floor Type Press 30 Tonne

Steel frame construction with side mounted hydraulic pump unit. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Includes flat pressing plate/V-blocks. Fitted with ram pressure gauge.

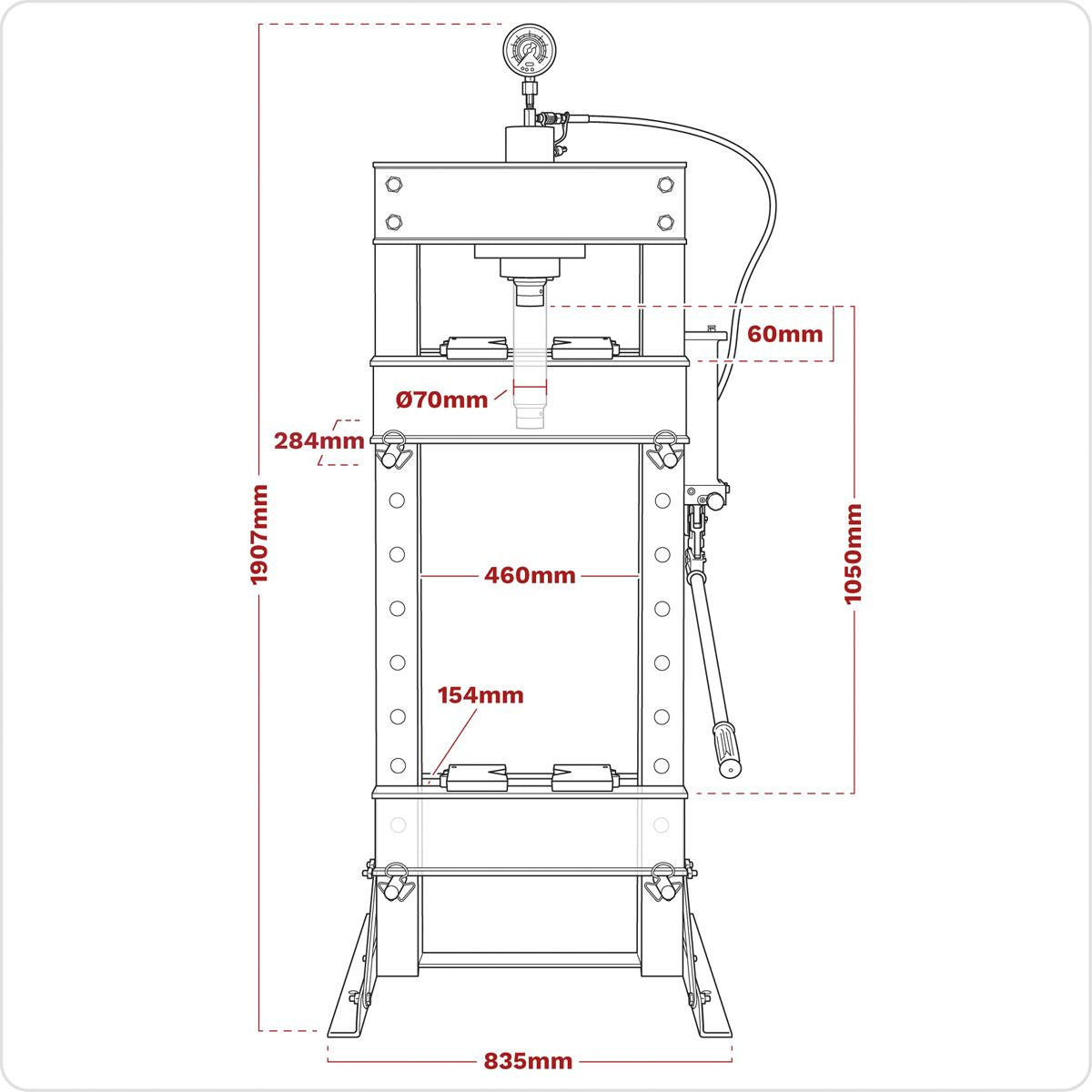

Product Specification

• Bench or Floor Mounting: Floor
• Brand: Sealey
• Capacity: 30 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 200mm
• Maximum Height - Ram to Table: 1050mm
• Minimum Height - Ram to Table: 60mm
• Nett Weight: 141.5kg
• Operating Table Width: 460mm
• Optional Accessories: YKPP8 - Press Pin Set
• Overall Height: 1907mm
• Overall Width: 835mm
• Ram Diameter: Ø70mm
• Ram Stroke: 150mm
• Table Aperture: 154mm
• Type: Hydraulic
• Working Table Depth: 284mm
• Working Table Width: 460mm
